C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-143 Rev.1

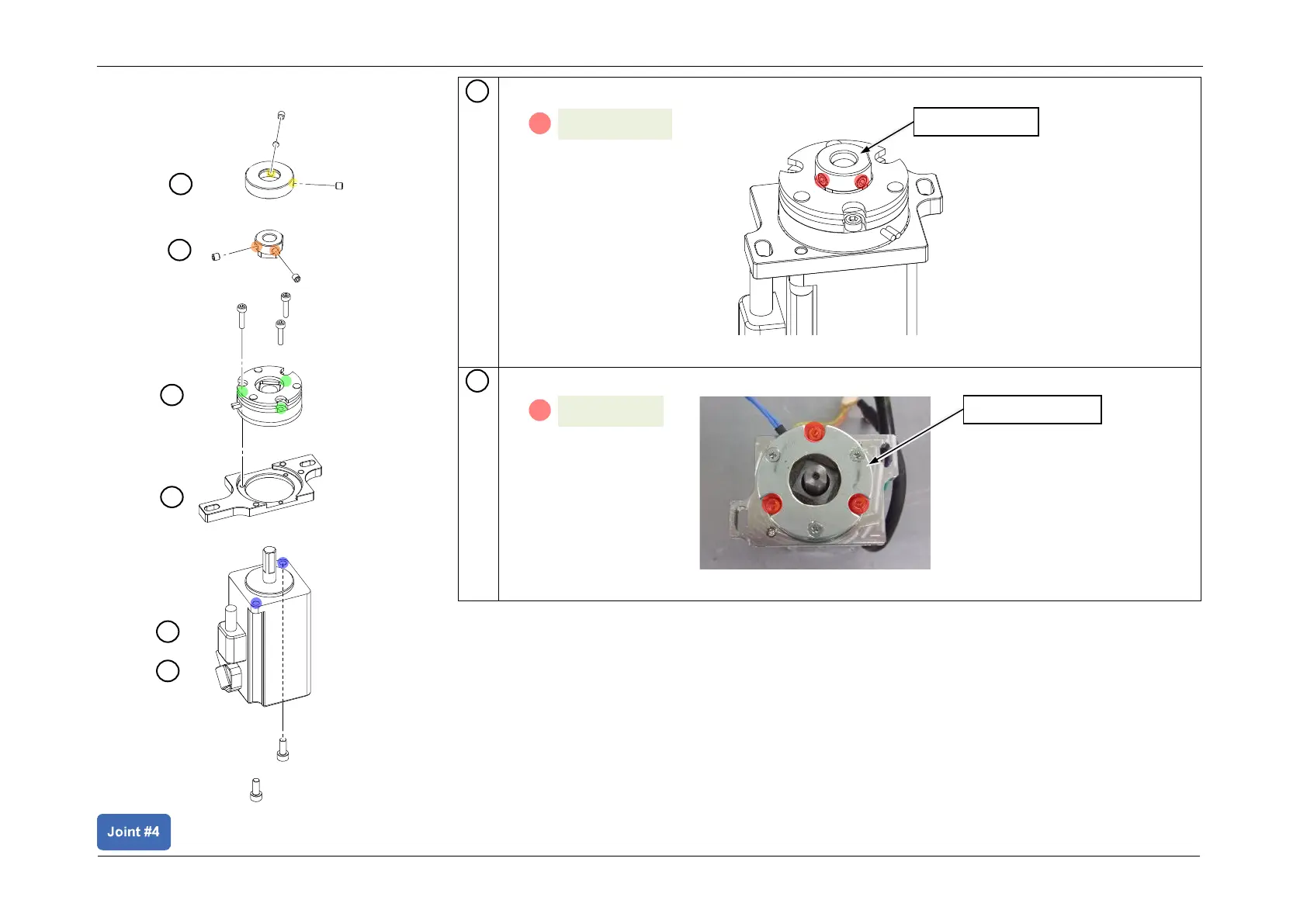

Remove the Brake Hub.
Remove the J4 brake.
4
S05: 2-M4x4
A
Brake Hub
5
S01: 3-M3x13
A
J4 brake
1
2
3
4
5
6
Motor Unit Disassembly
