C8-B/C12-B Service Manual Maintenance Information Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 1-15 Rev.1
Joint #1 Reduction Gear Unit (Ceiling Mounting, Wall mounting)

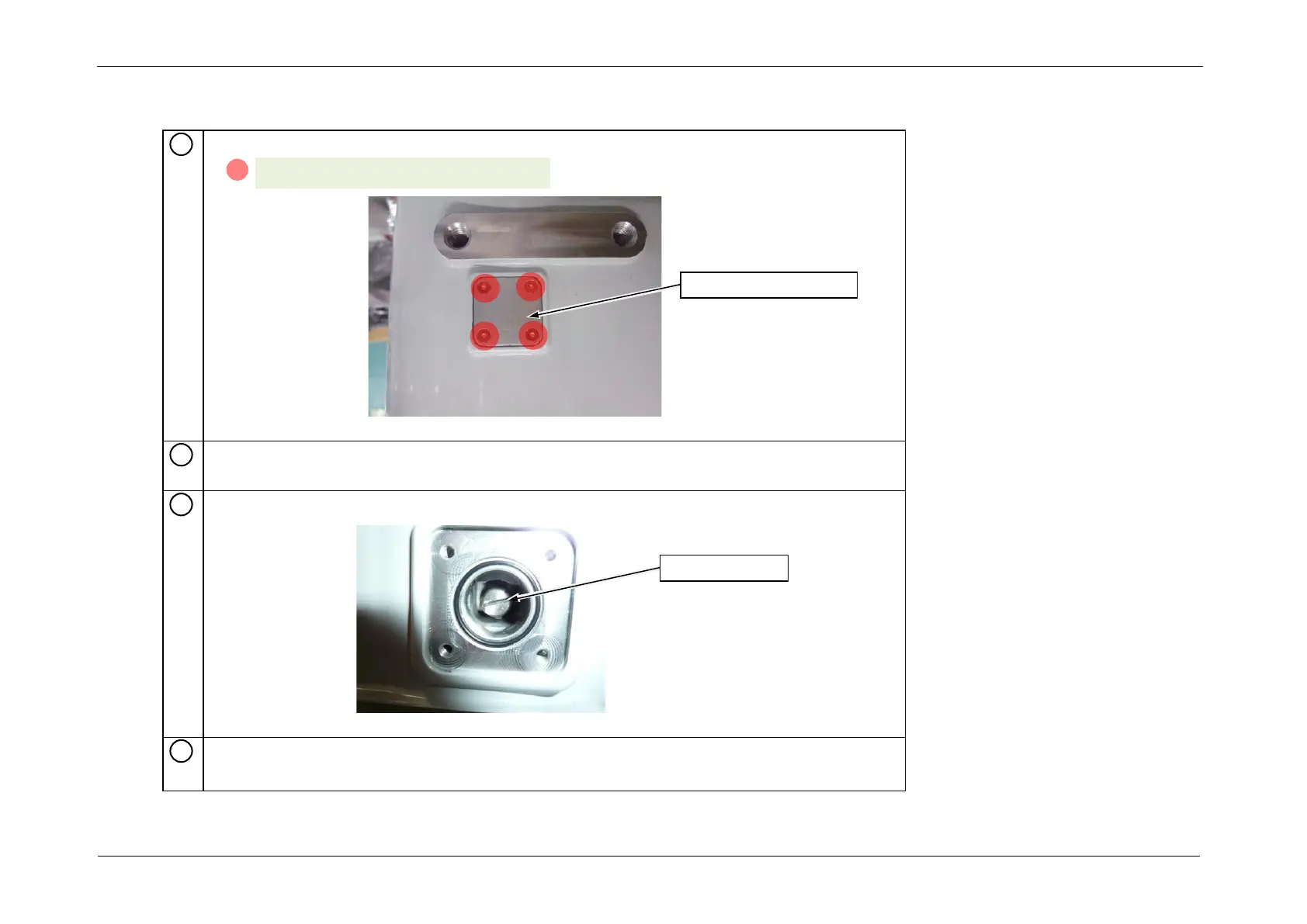

Remove the base grease inlet cover.
Remove the O-ring located in the base groove.
Remove the grease plug from the Joint #1 grease inlet located inside the base.
Attach the grease line extension jig and grease nipple to the Joint #1 grease inlet.
1
A
Hexagon socket flat head bolts: 4-M3x6
Base grease inlet cover
2
3
Grease plug
4
