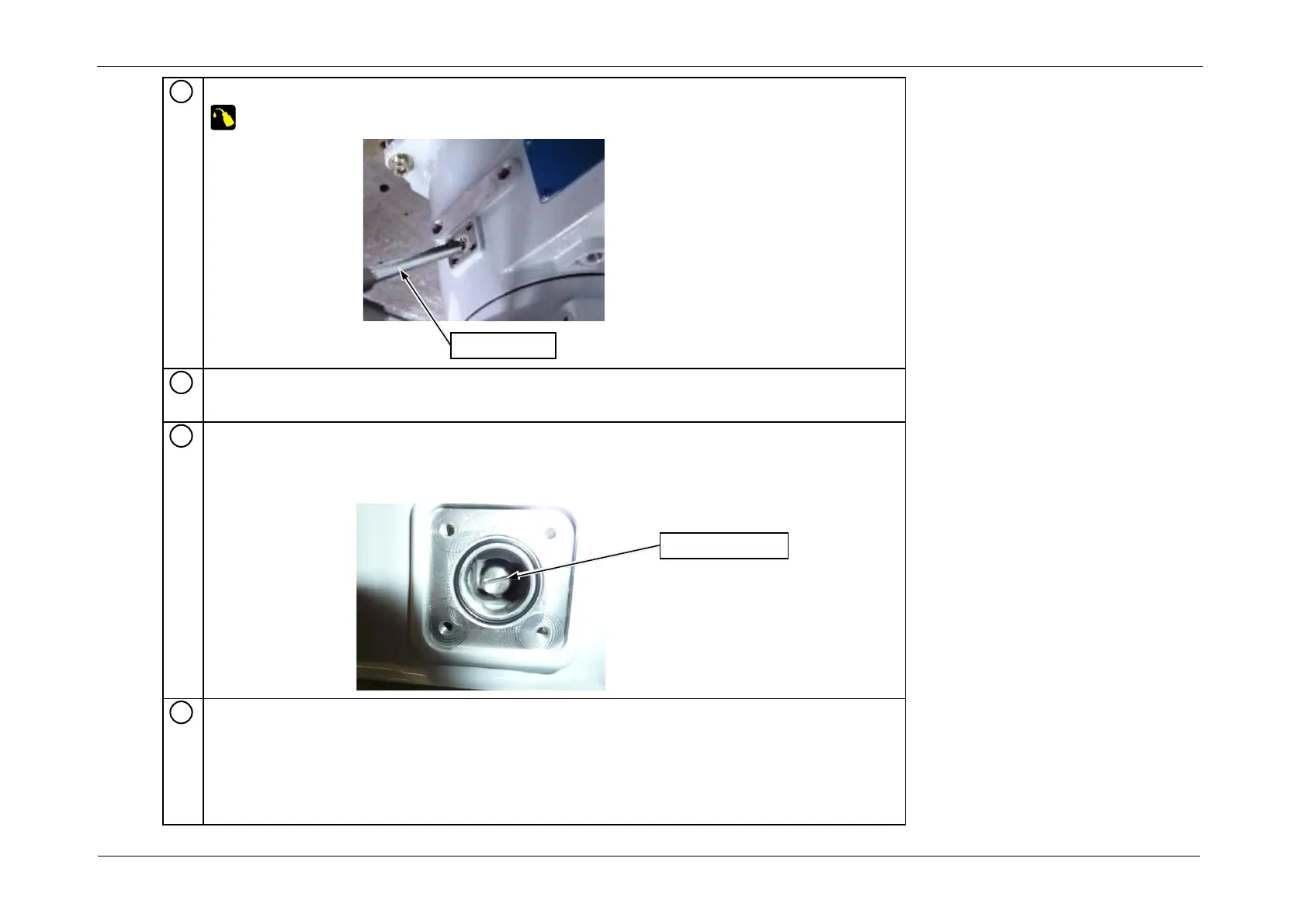

Inject grease from the grease nipple using a grease gun.
SK-1A: 11 g
Remove the grease nipple and grease line extension jig from the Joint #1 grease inlet.
Attach the grease plug to the Joint #1 grease inlet.
POINT
If the grease plug is damaged or deteriorated, replace it with a new one.
Apply a thin coat of grease (SK-1A) to the O-ring.
POINT
• Fit the O-ring into the base groove.
• Do not allow the O-ring to come out of the groove.
• If the O-ring is swollen, damaged, or deteriorated, replace it with a new one.
5
Grease Gun
6
7
Grease plug
8
