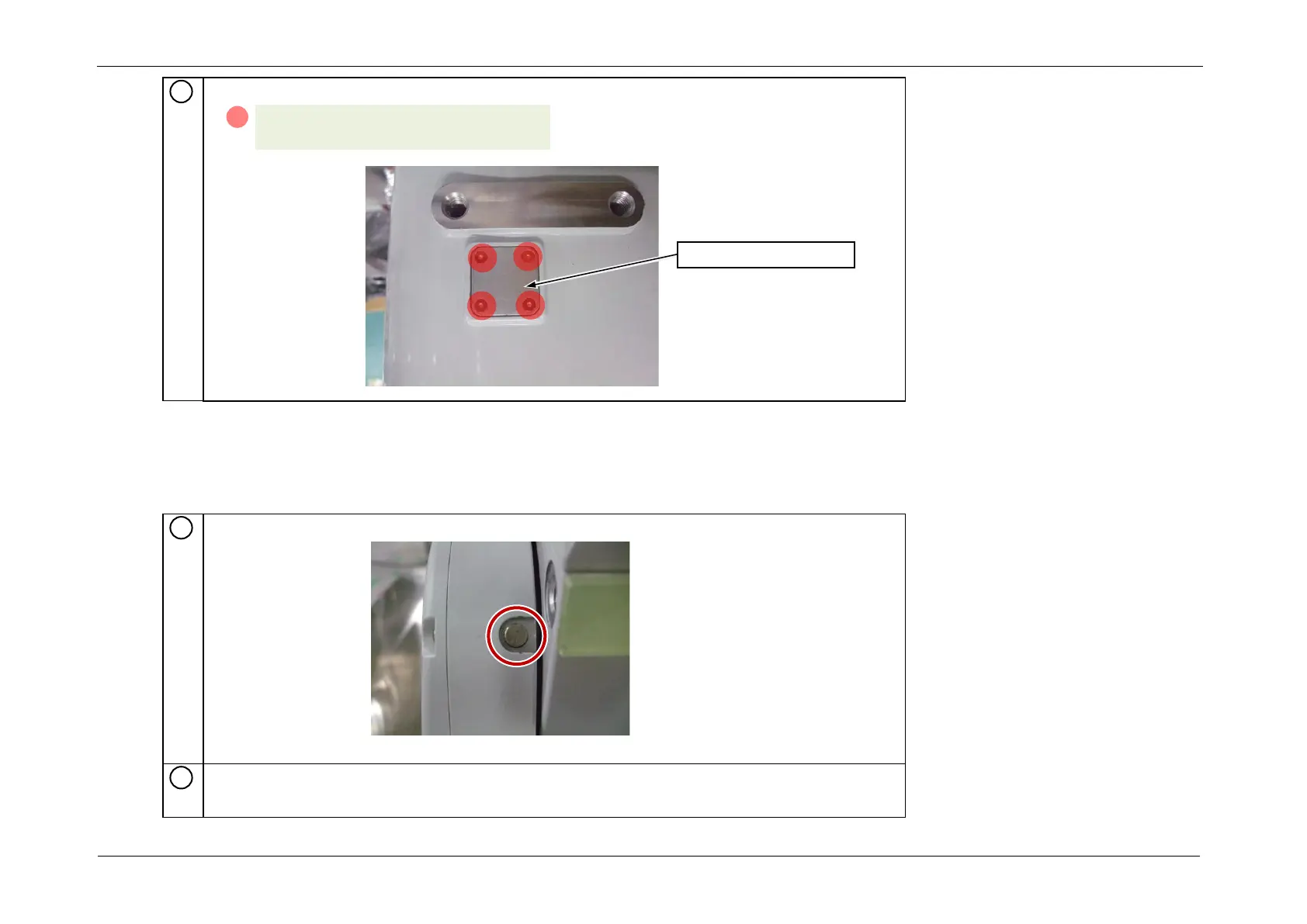

Install the base grease inlet cover.
Joint #2 Reduction Gear Unit
Remove the grease plug from the Joint #2 grease inlet of the Arm #1.
Attach the grease nipple to the Joint #2 grease inlet.
9
A
Hexagon socket flat head bolts: 4-M3x6
(2.0 +/- 0.1 N·m)
Base grease inlet cover
1
2
