C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-192 Rev.1

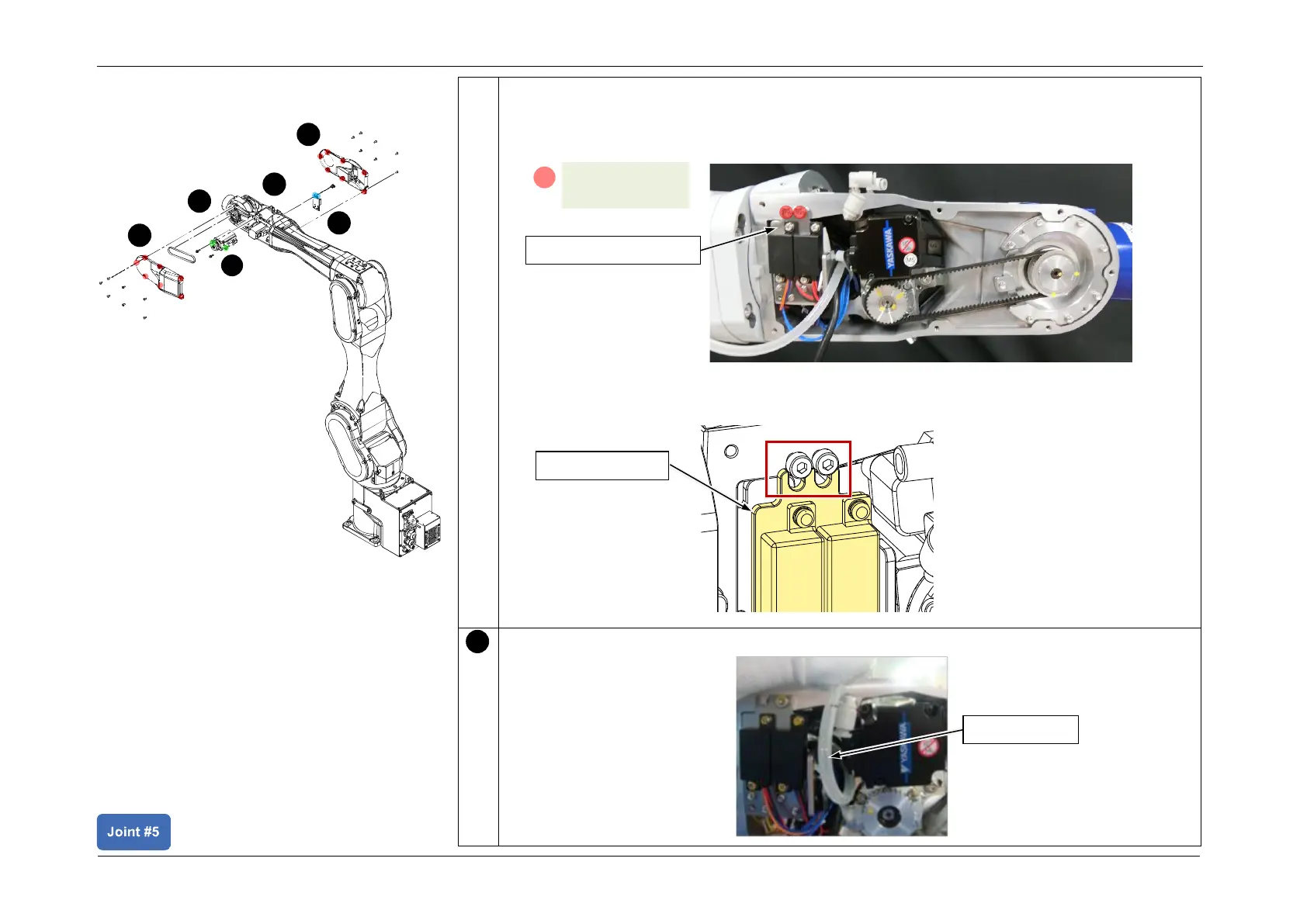

4. Install the cable protection plate.
CAUTION
Be careful not to let the cables get pinched.
POINT
Slide the cutout section on the cable protection plate, and secure with screws.
Install the Air tube.
Cable fixing plate
S01: 2-M4x10
(4.0 +/- 0.2 N⋅m)
A
Cable protection plate
5
Air tube
Installing the Motor Unit
5
3
1
4
6
6
