C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-200 Rev.1

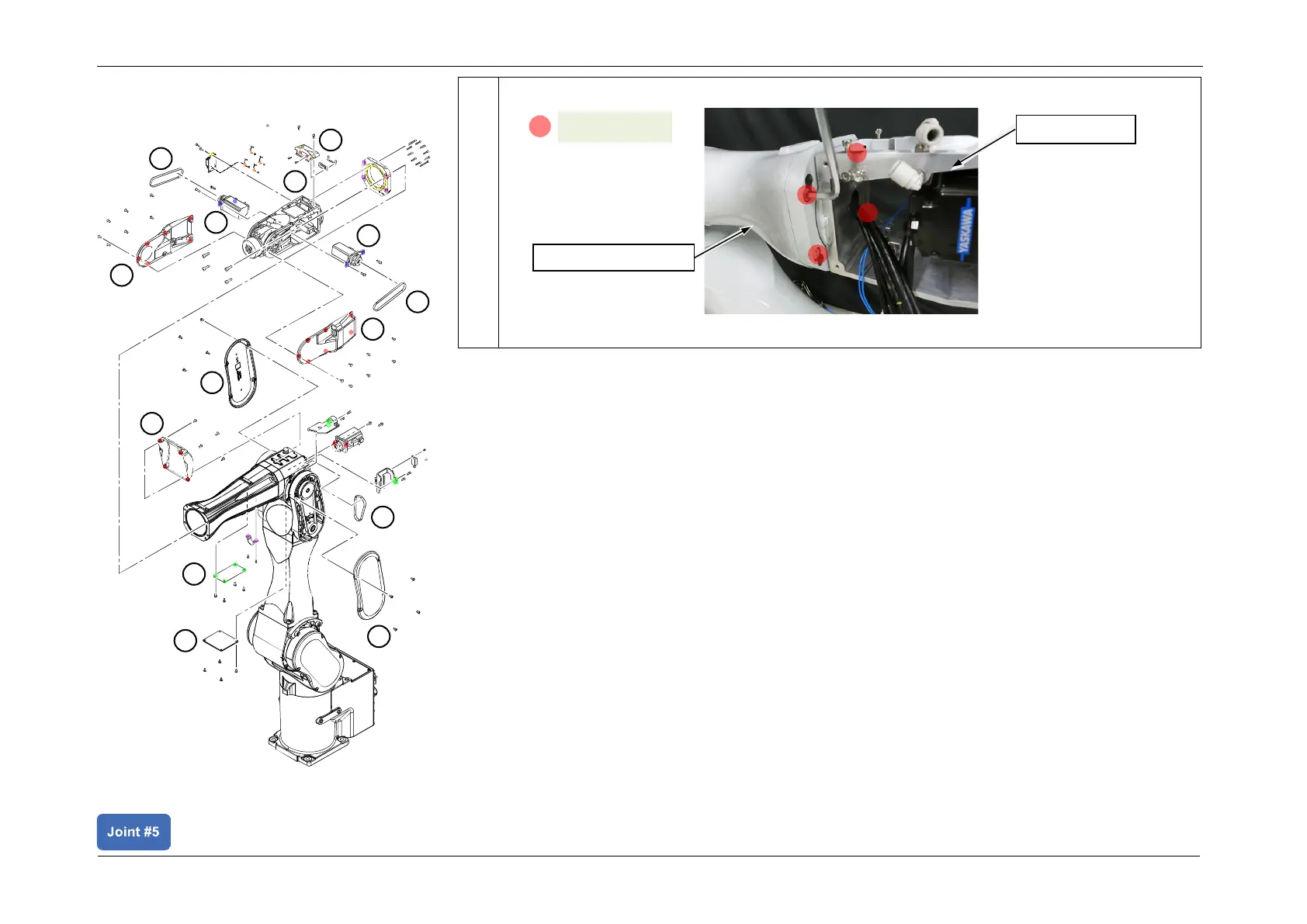

2. Remove the screws shown in the figure, then remove the Arm4 unit.
S01: 4-M6x20
A
Arm4 unit
Arm4 extension part
Removing the Arm4 Unit
7
8
10
9
5
9
9
9
11
6
5
8
9
4
