Joint #3 Reduction Gear Unit

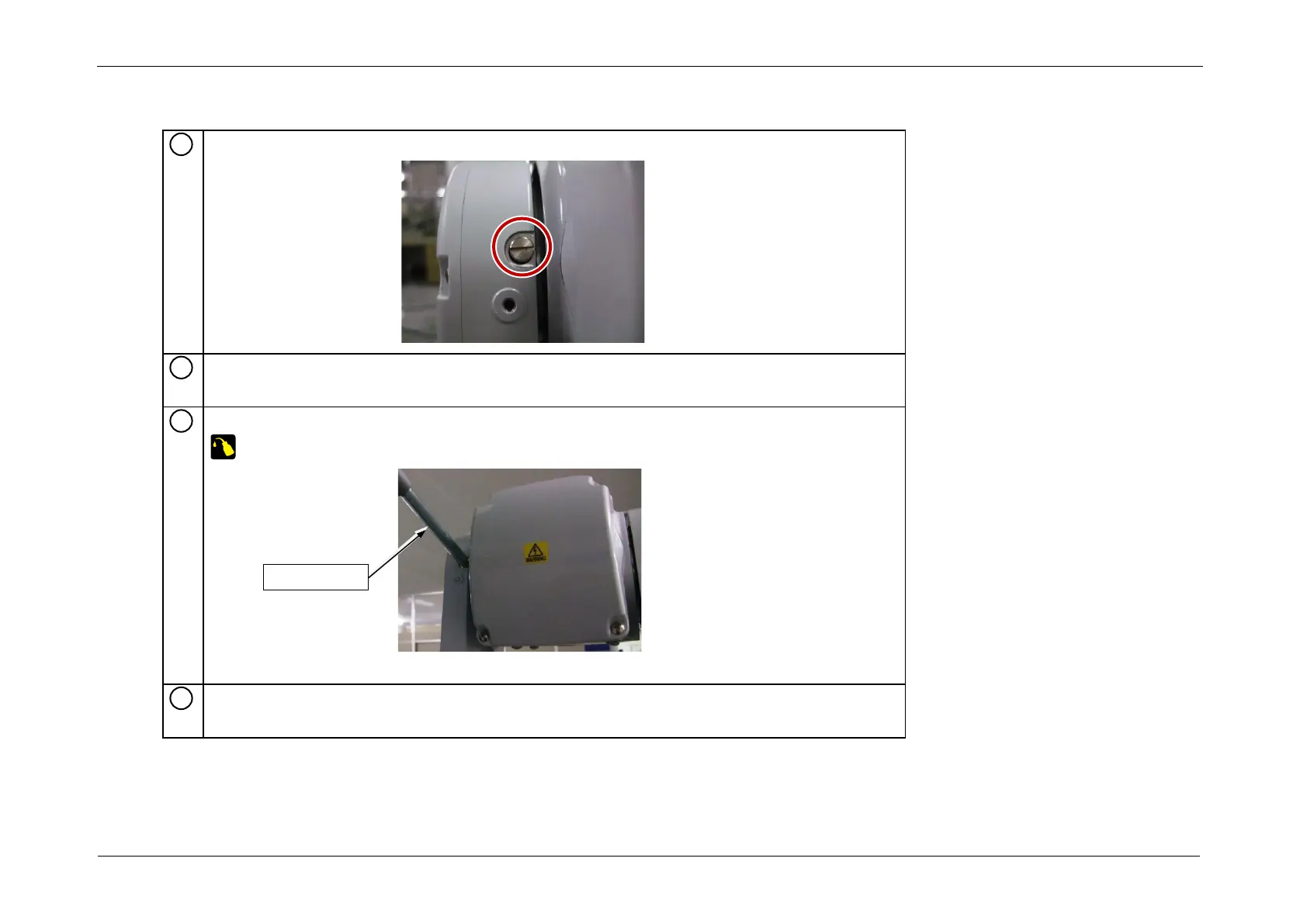

Remove the grease plug from the Joint #3 grease inlet of the Arm #2.
Attach the grease nipple to the Joint #3 grease inlet.
Inject grease from the grease nipple using a grease gun.
SK-1A: 3 g
Remove the grease nipple from the Joint #3 grease inlet.
1
2
3
Grease Gun
4
