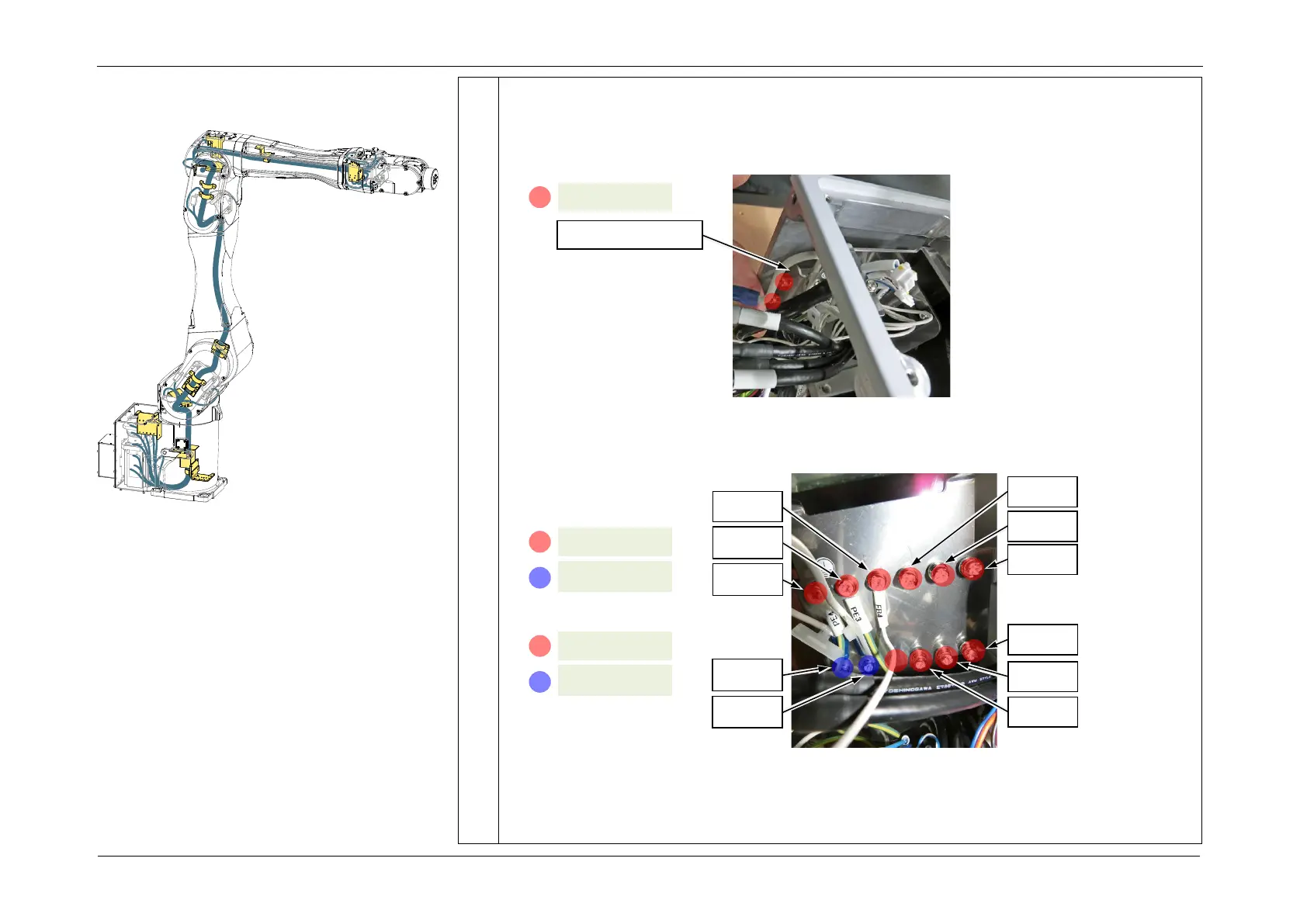

7. Remove the ground wire plate.
CAUTION
When removing the plate, take care not to damage the DC/DC Board, such as by
contacting the base.
8. Pull out the ground wire plate from the base, and disconnect the following Ground
Wires.
PE3, FB4, FB3, FB16, FB8, FB7, FB6, FB5
POINT
The Ground Wires may be attached in positions different to what is shown in the figure.
Record the attachment positions before disconnecting, so that they can be returned to
their positions during installation.
To Next Page
