C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-238 Rev.1

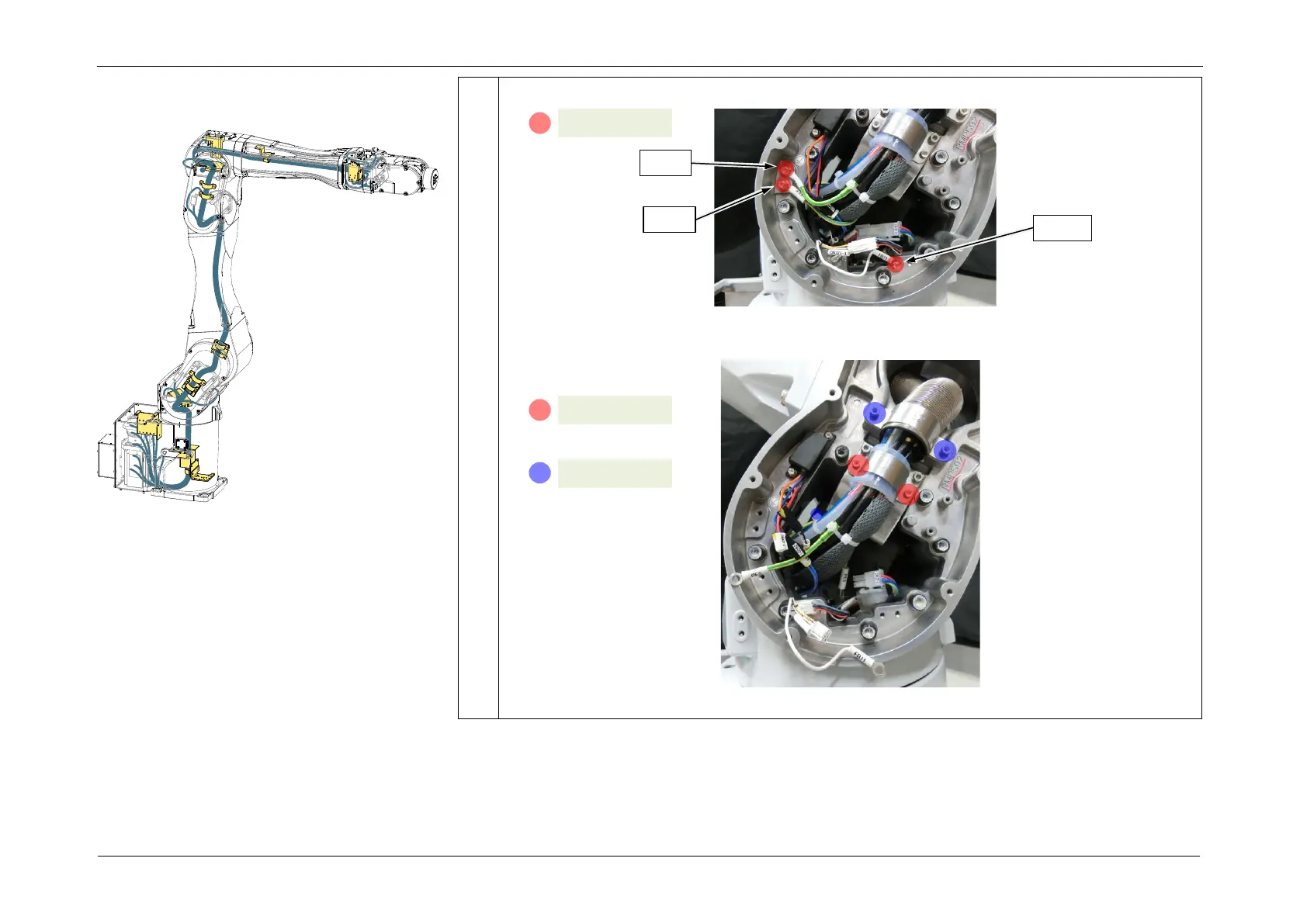

9. Remove the screws securing the Ground Wires.
10. Remove the Arm1 cable brackets (C2, S2) and silicone tube.
S01: 2-M3x6
A
C2:
S01: 2-M4x10
S2:
B
S04: 3-M4x6
A
FB11
PE5
PE6
Removing the Cable Unit
