C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-239 Rev.1

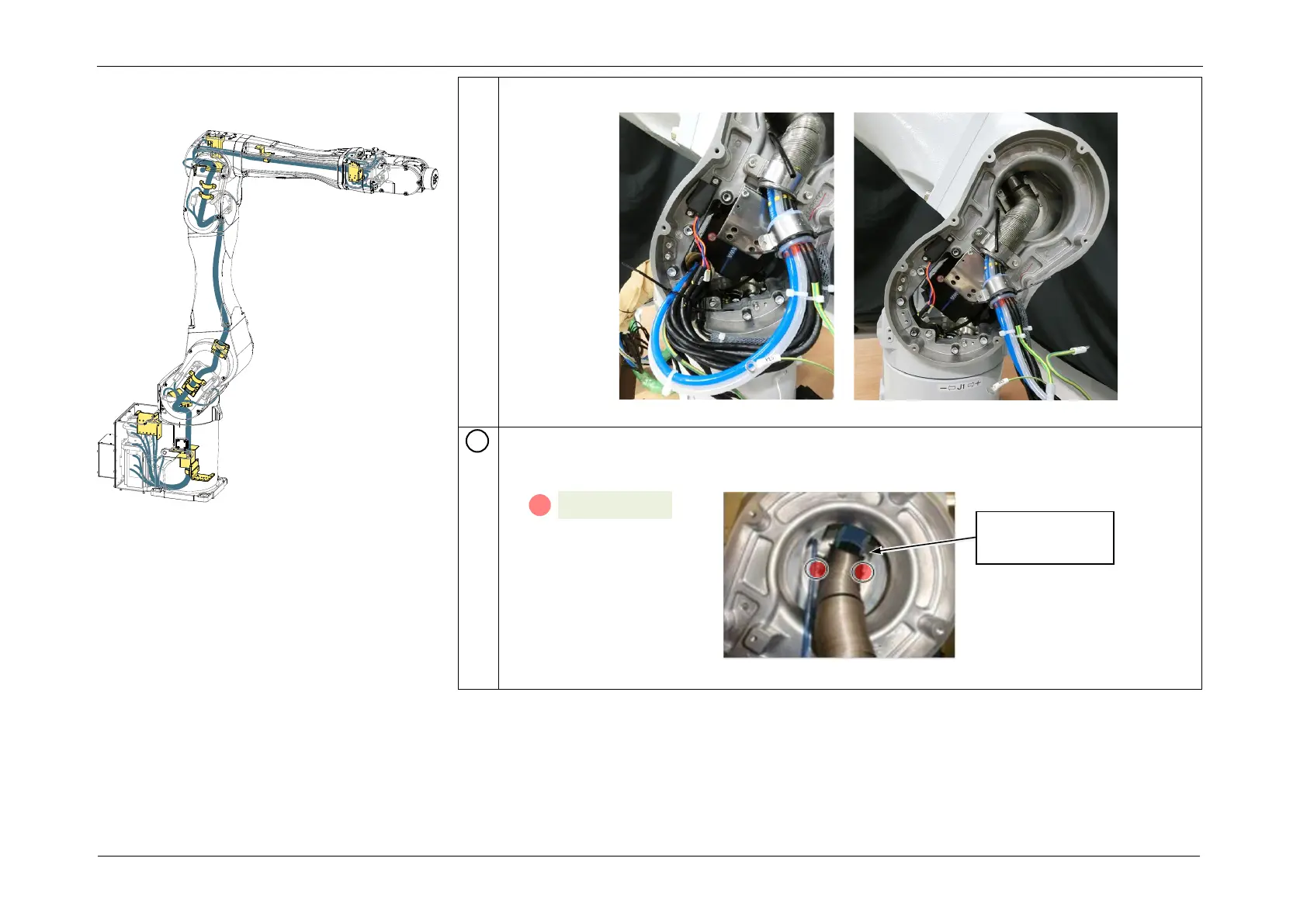

11. Pull the bundle of cables to the Arm2 side.
Remove the Cable Unit from Arm2.
1. Loosen the screws securing the Arm2 cable fixing plate, and remove the plate.
7
S01: 2-M4x10
A
Arm2 cable fixing
plate
Removing the Cable Unit
