Epson C8-B - Page 282

C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-240 Rev.1
POINT

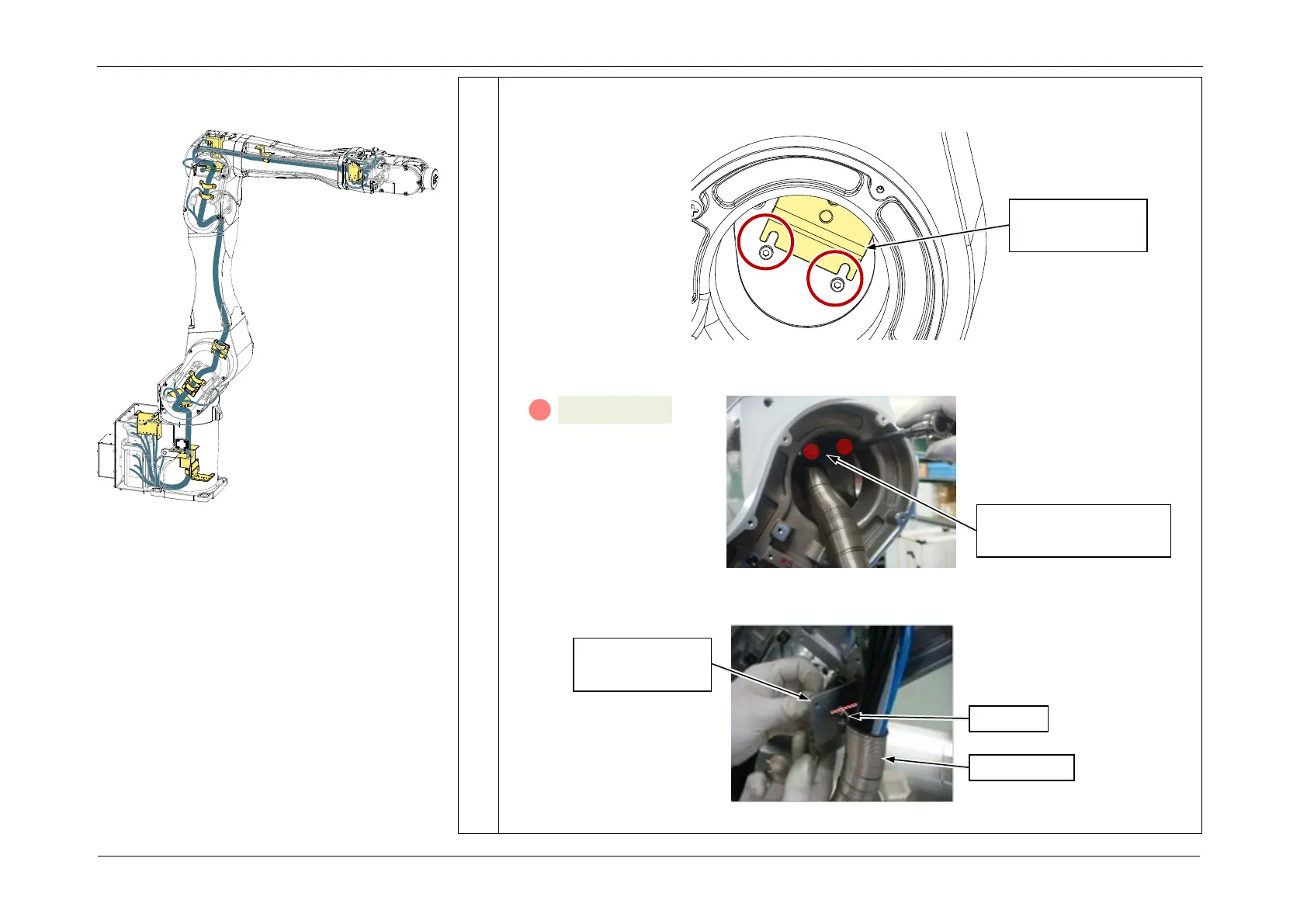

Slide the cutout section on the Arm2 cable fixing plate.
2. Remove the Arm2 cable bracket (C2) and silicone tube.
3. Cut the wire tie securing the protective spring to the Arm2 cable fixing plate.
Arm2 cable fixing
plate
Wire tie
Protective
spring
S01: 2-M3x6
A
Arm2 cable bracket (C2)
and silicone tube
Arm2 cable fixing
plate
Removing the Cable Unit
