C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-241 Rev.1

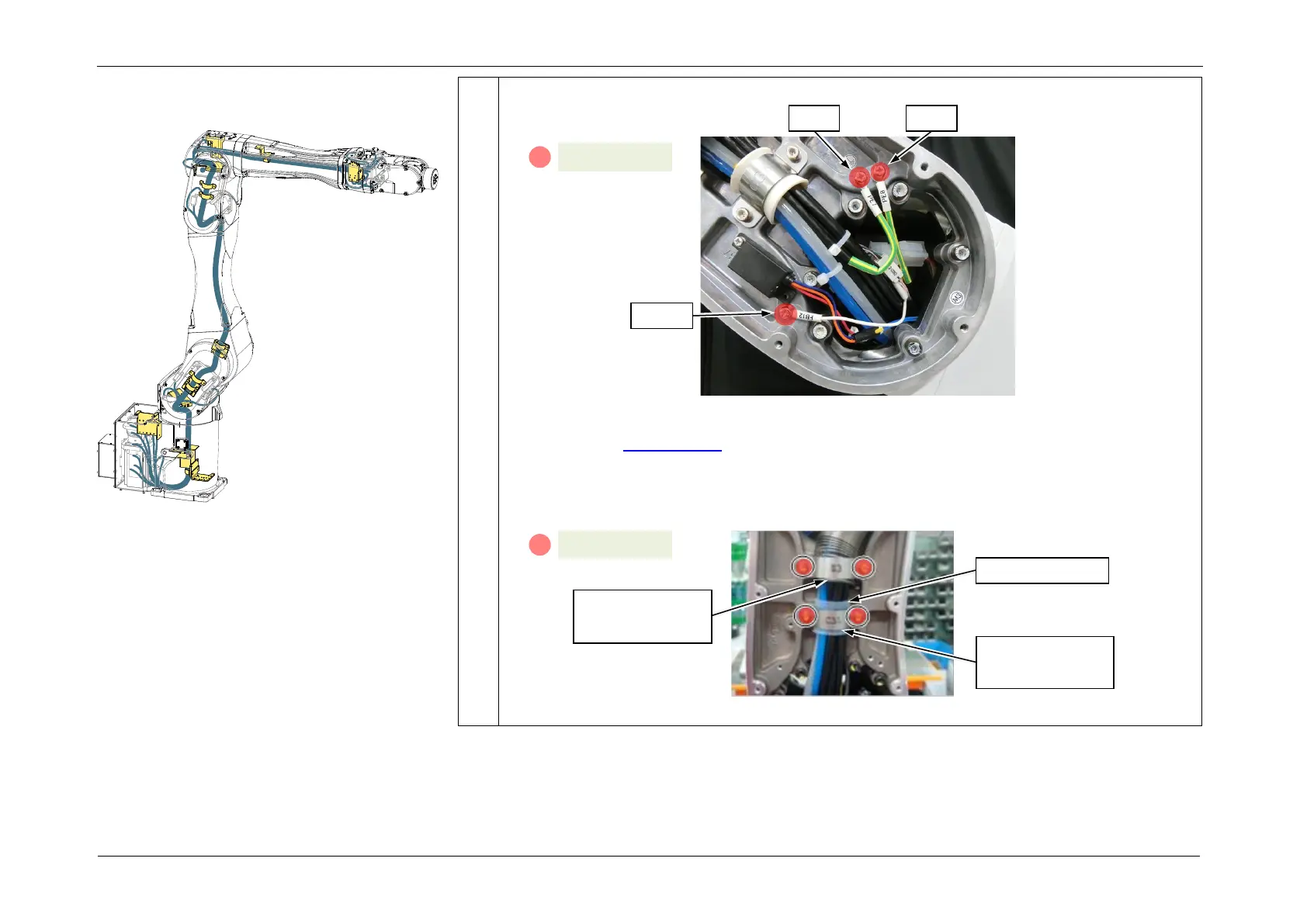

4. Disconnect the Arm2 Ground Wires (PE7, PE8, FB12).
5. Remove the J3 Motor unit.
Perform steps  to .
6. Remove the Arm2 cable brackets (C3A, S3) and silicone tube.
S01: 4-M4x8
A
Arm2 cable
bracket (C3A)
Arm2 cable
bracket (S3)
Silicone tube
S04: 3-M4x6
A
PE7
PE8
FB12
Removing the Cable Unit
