C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-242 Rev.1

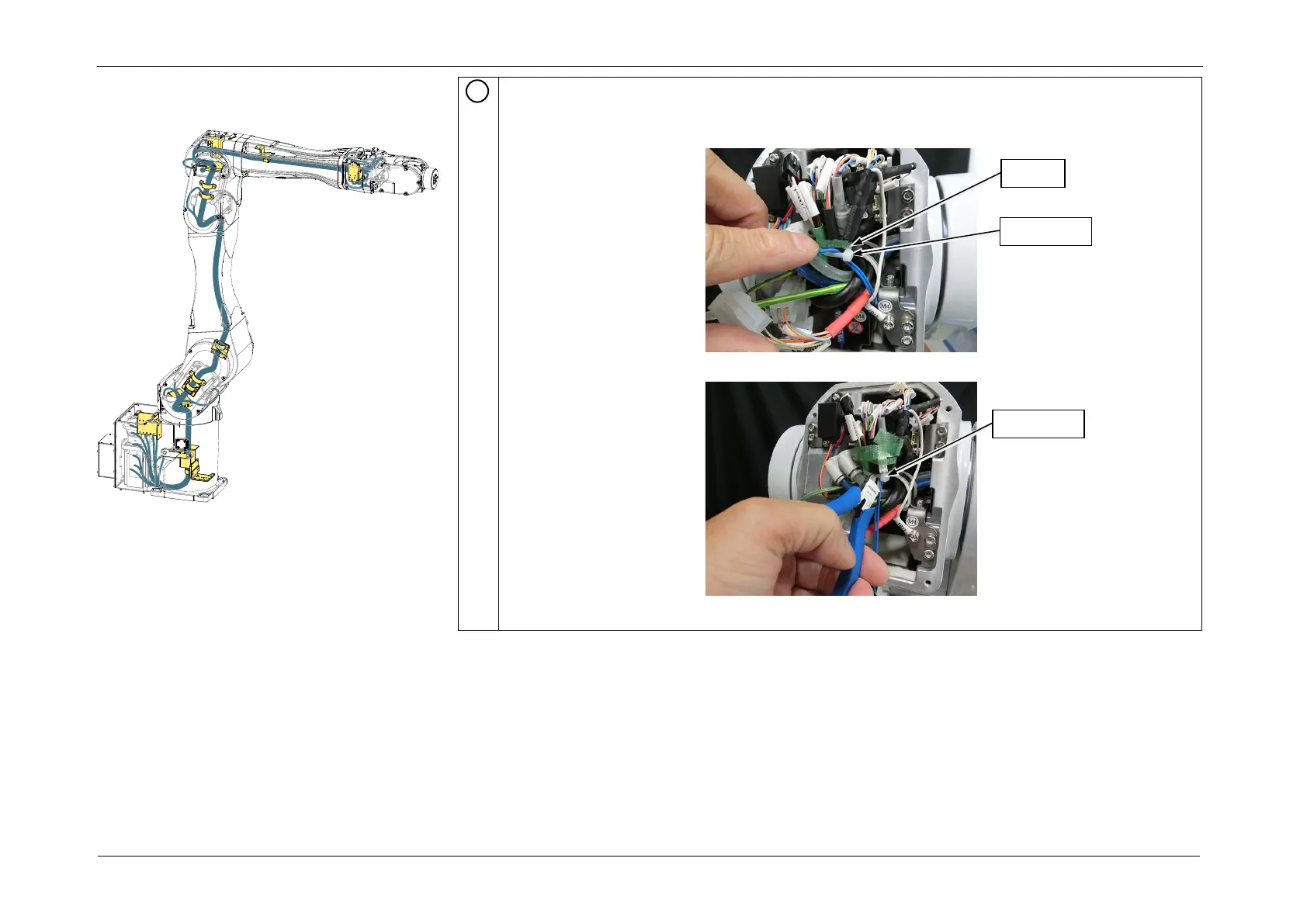

Remove the Cable Unit from Arm3.
1. Using a marker pen or tape, mark all of the cables bound with the wire tie as shown in
the figure.
2. Cut the wire tie.
3. Remove the connectors (CN440, CN141, CN341).
8
Wire tie
Wire tie
Tape
Removing the Cable Unit
