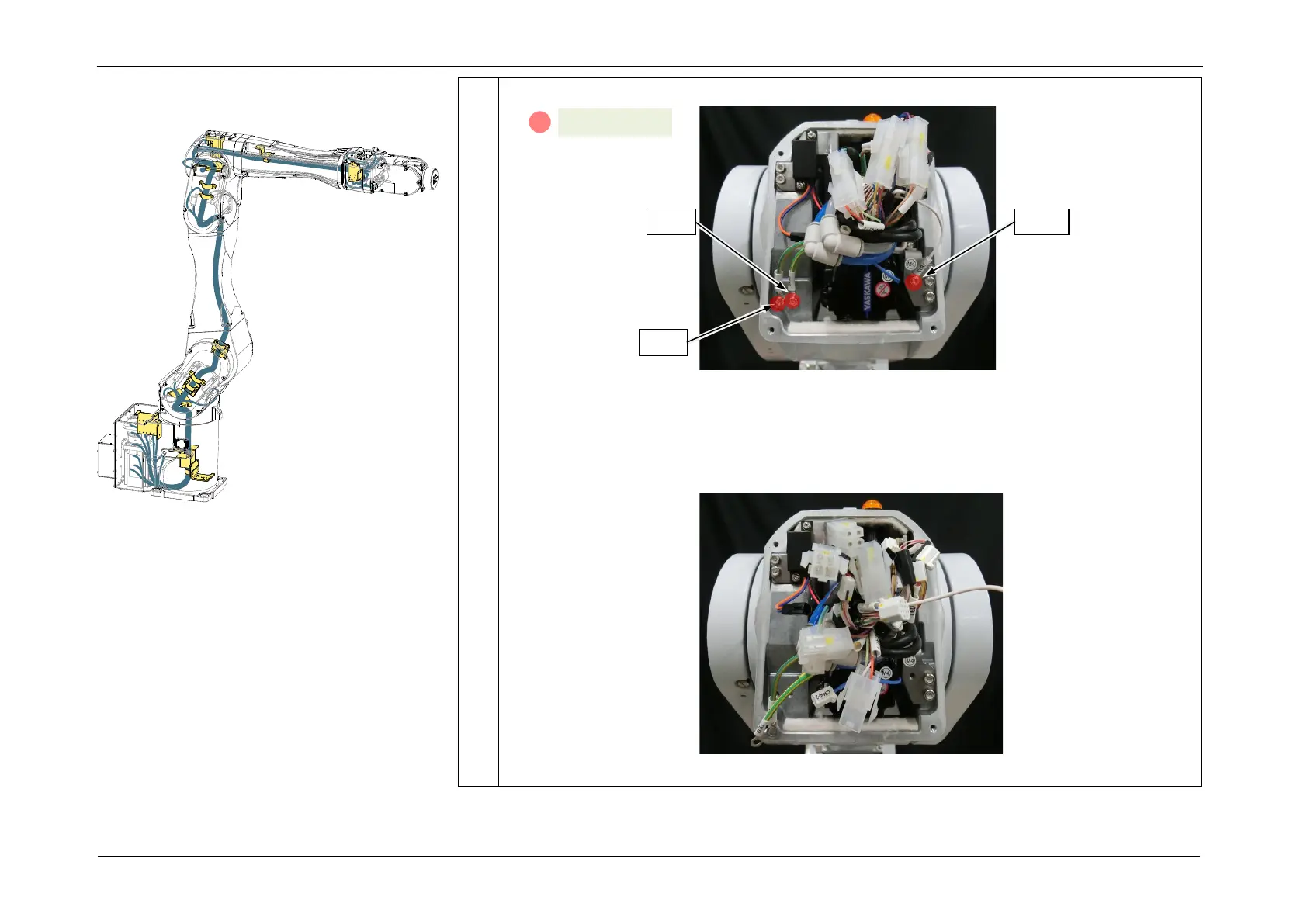

4. Disconnect the Arm3 Ground Wires (PE9, PE10, FB13).
5. Disconnect the connectors (CN141, CN152, CN162, CN203, CN341, CN440, CN441,
CN521, CN522, CN592, LED) inside Arm3.
POINT
Press the connector clip, and pull out.
PE9
S04: 3-M4x6
A
PE13
PE10
Removing the Cable Unit
