Epson C8-B - Page 286

C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-244 Rev.1

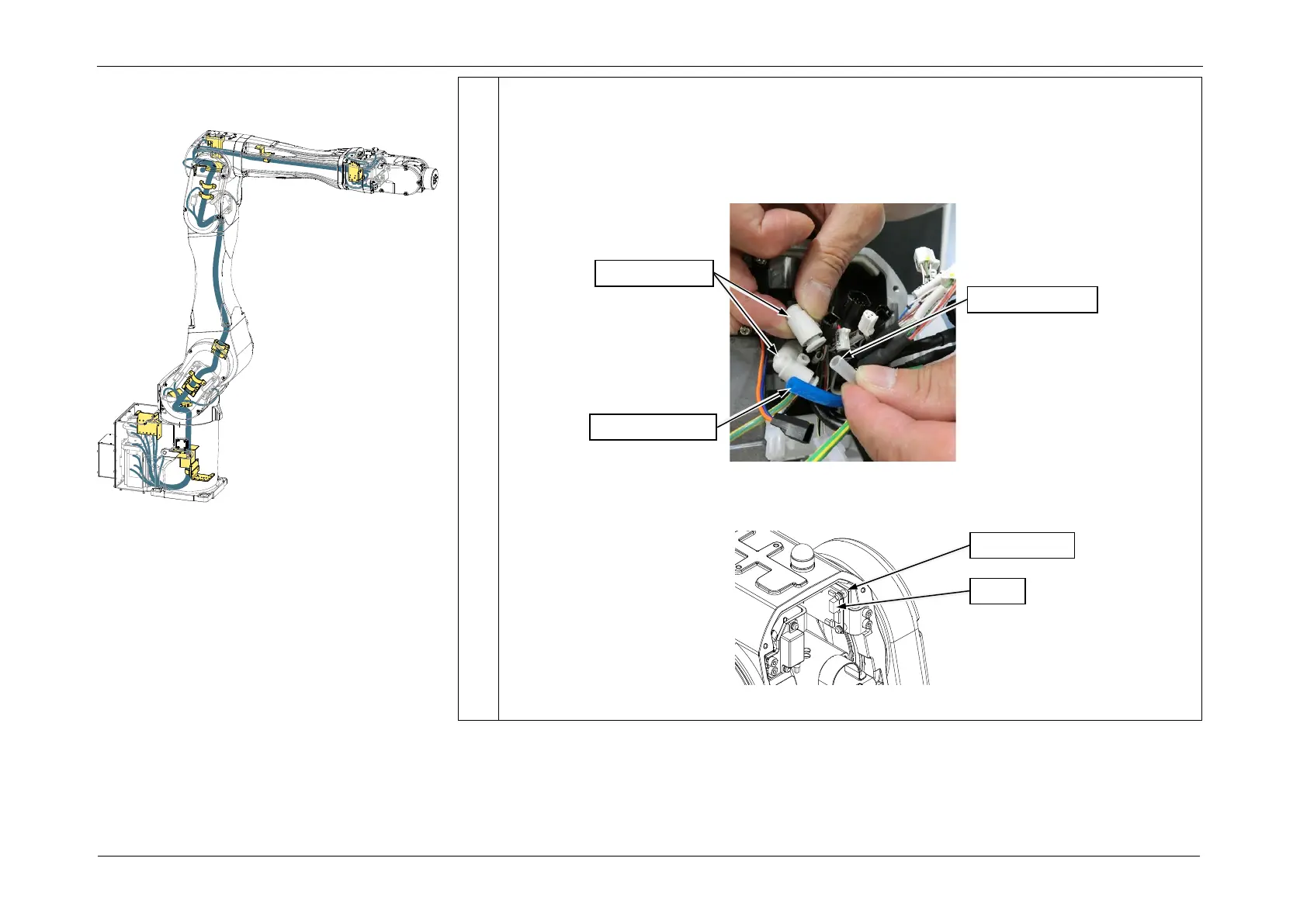

6. Disconnect the Air Tubes (blue/white) inside Arm3.
POINT
• Remove the air tube fittings from the air tubes.
• The air tube fittings will be used again during installation. Store them and do not
dispose of them.
7. Disconnect the connector (CN3) from gyro board 2.
CN3
Gyro board 2
Air Tube (white)
Air Tube (blue)
Air tube fittings
Removing the Cable Unit
