C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-245 Rev.1

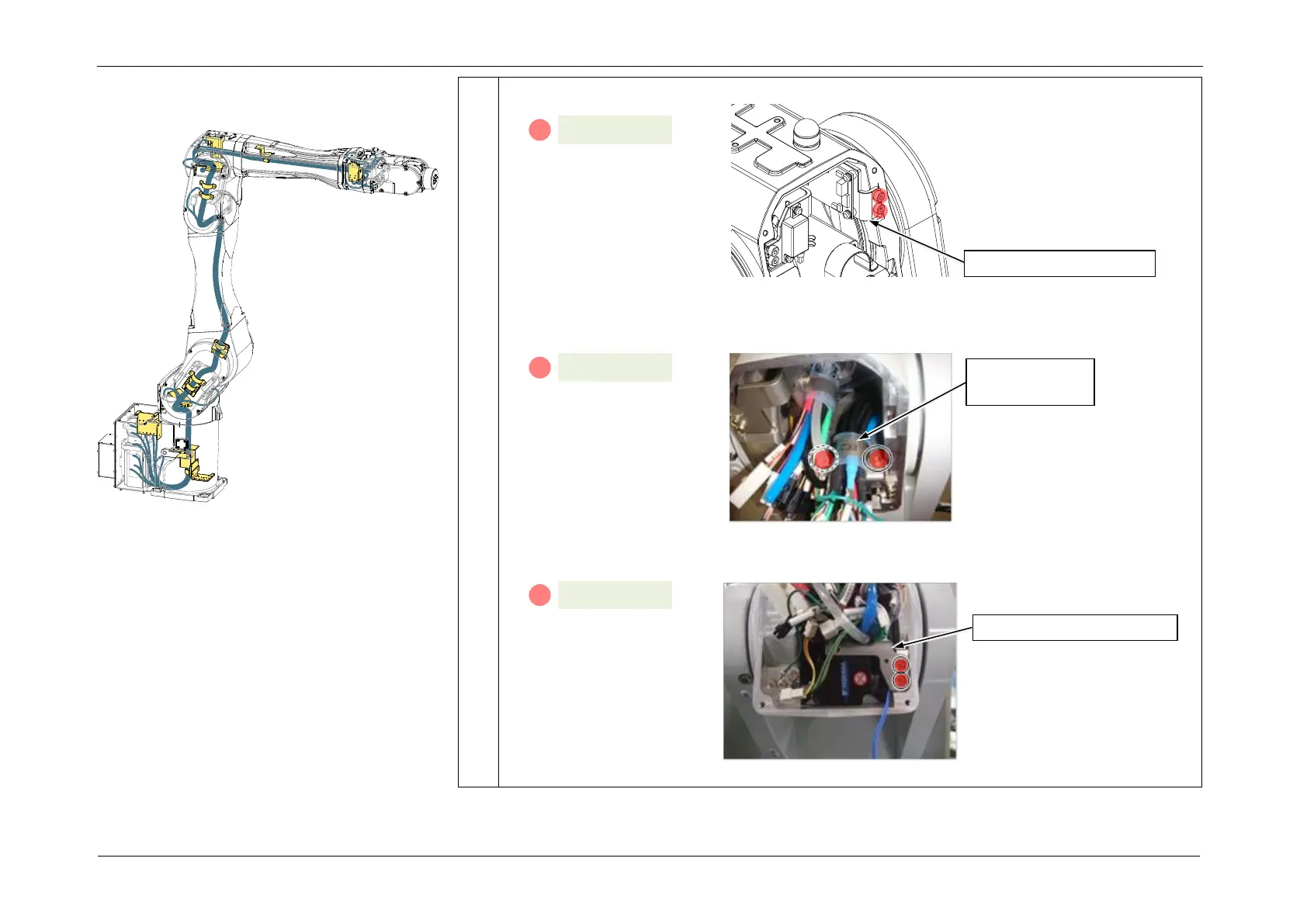

8. Remove the gyro board 2 fixing plate.
9. Remove the Arm3 cable bracket (C3B).
10. Loosen the screws on the Arm3 cable fixing plate 1, and remove the plate.
Arm3 cable
bracket (C3B)
S01: 2-M3x6
A
Gyro board 2 fixing plate
S01: 2-M4x10
A
S01: 2-M4x10
A
Arm3 cable fixing plate 1
Removing the Cable Unit
