C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-246 Rev.1
POINT

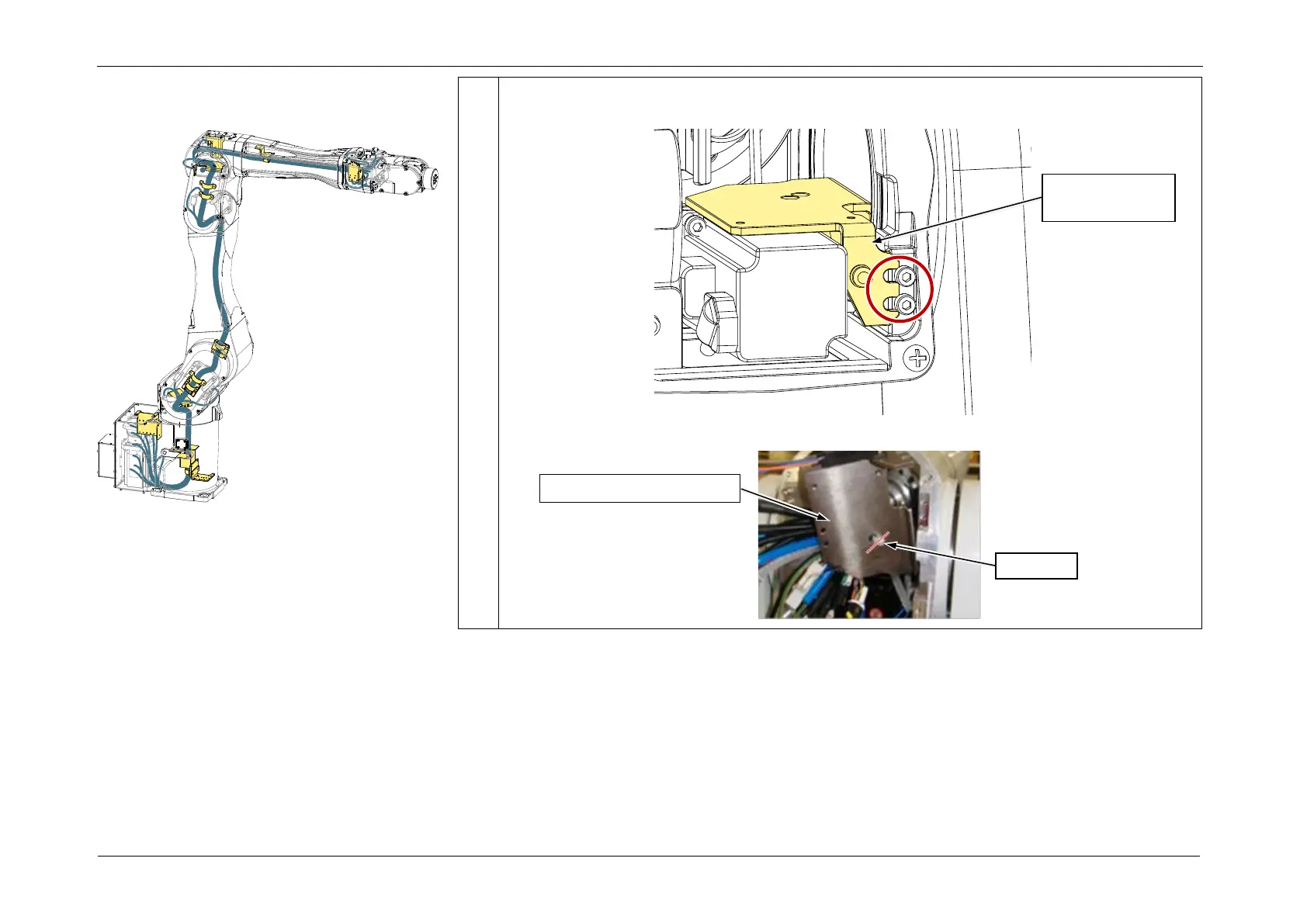

Slide the cutout section on the Arm3 cable fixing plate 1.
11. Cut the wire tie securing the cable protective spring.
Wire tie
Arm3 cable fixing plate 1
Arm3 cable fixing
plate 1
Removing the Cable Unit
