C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-247 Rev.1

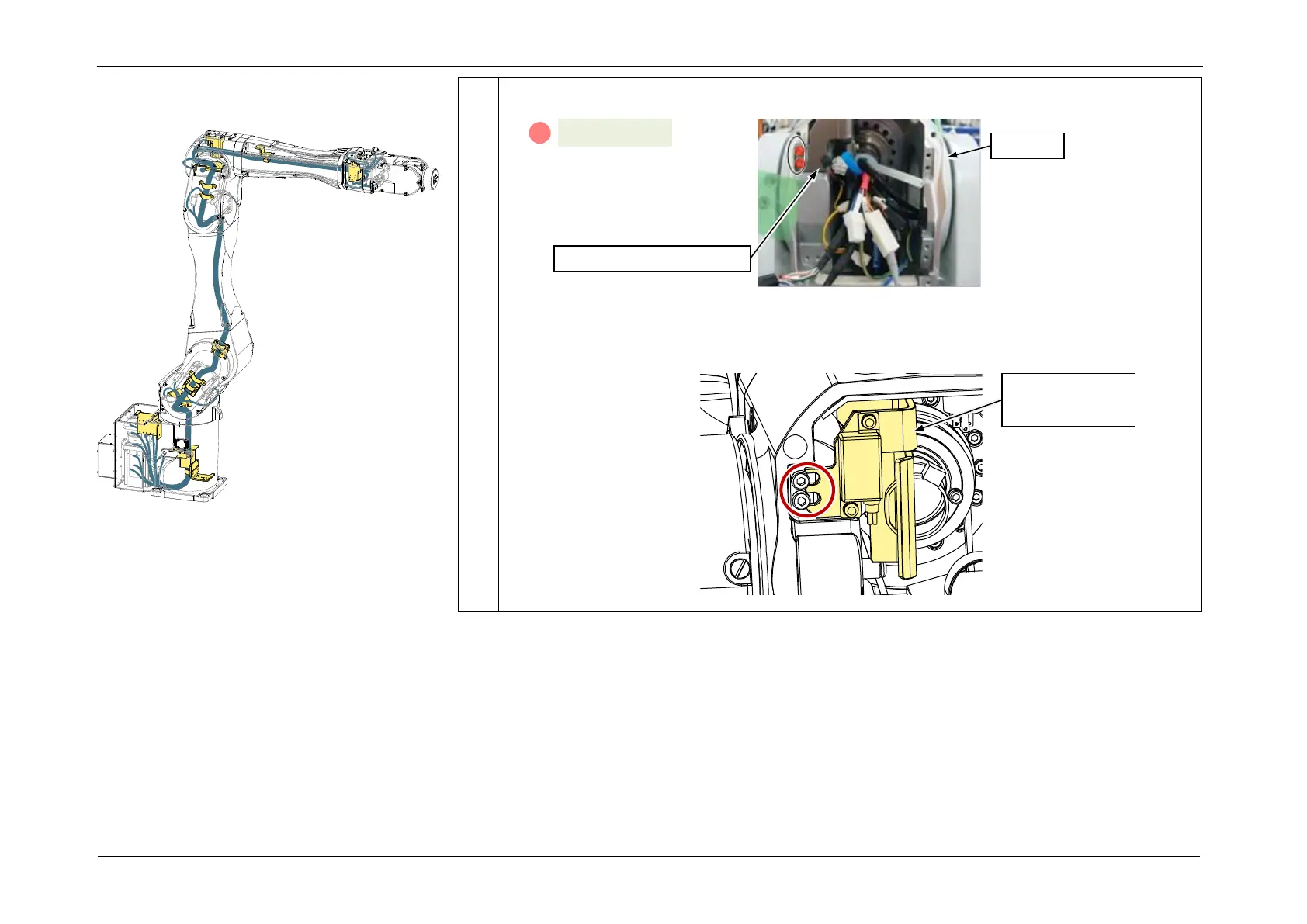

12. Loosen the screws on Arm3 cable fixing plate 2, and remove the plate from Arm3.
POINT
Slide the cutout section on the Arm3 cable fixing plate 2.
Arm3 cable fixing
plate 2
S01: 2-M4x10
A
Arm3
Arm3 cable fixing plate 2
Removing the Cable Unit
