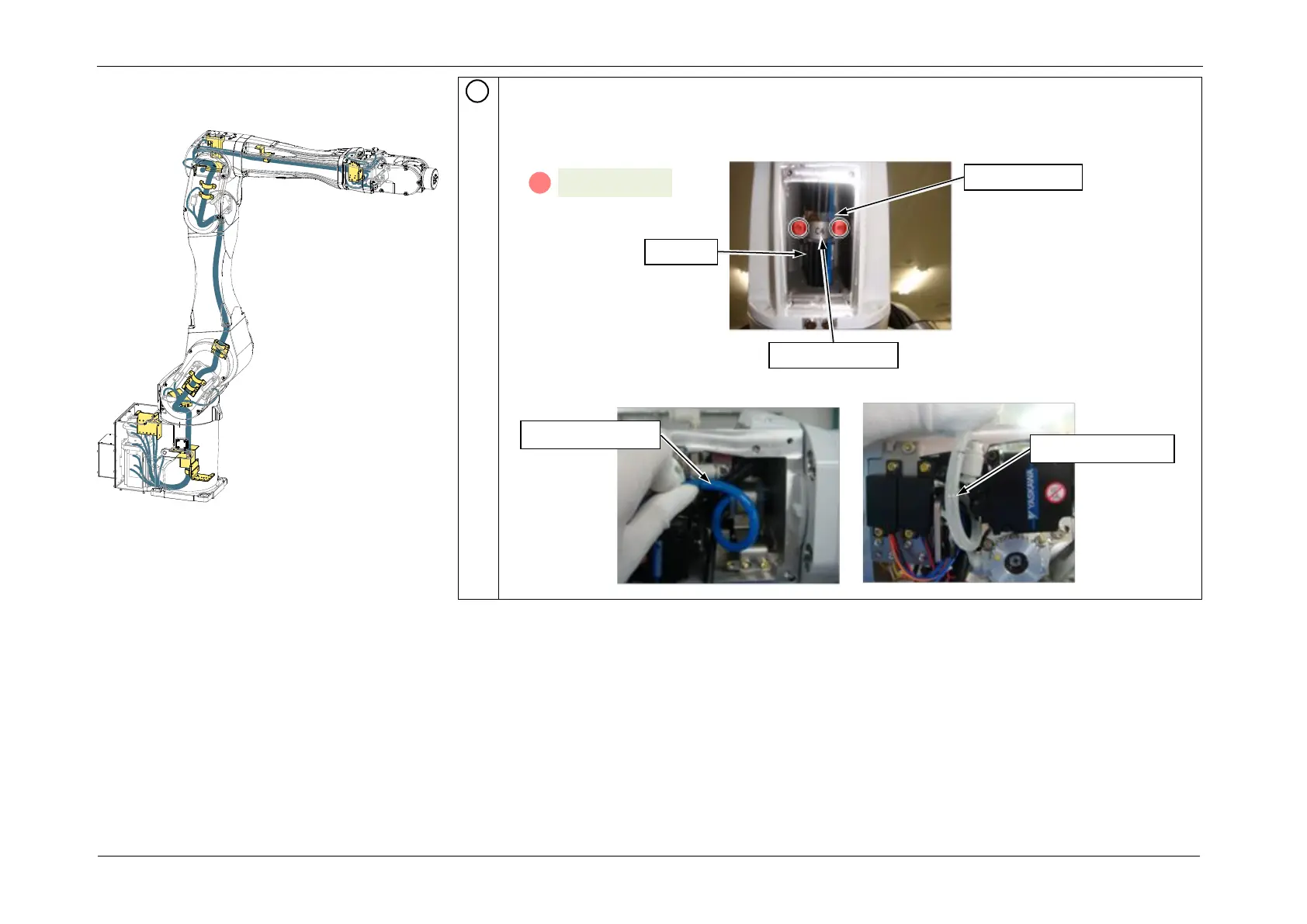

Remove the Cable Unit from Arm4.
1. Remove the cable bracket at the Arm4 maintenance cover, and remove the Silicone
Sheet from the cable.
2. Disconnect the Air Tubes (blue/white).
9
Air Tube (white)
Air Tube (blue)
S01: 2-M3x6
A
Silicone Sheet
Cable bracket
Cable
Removing the Cable Unit
