C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-250 Rev.1

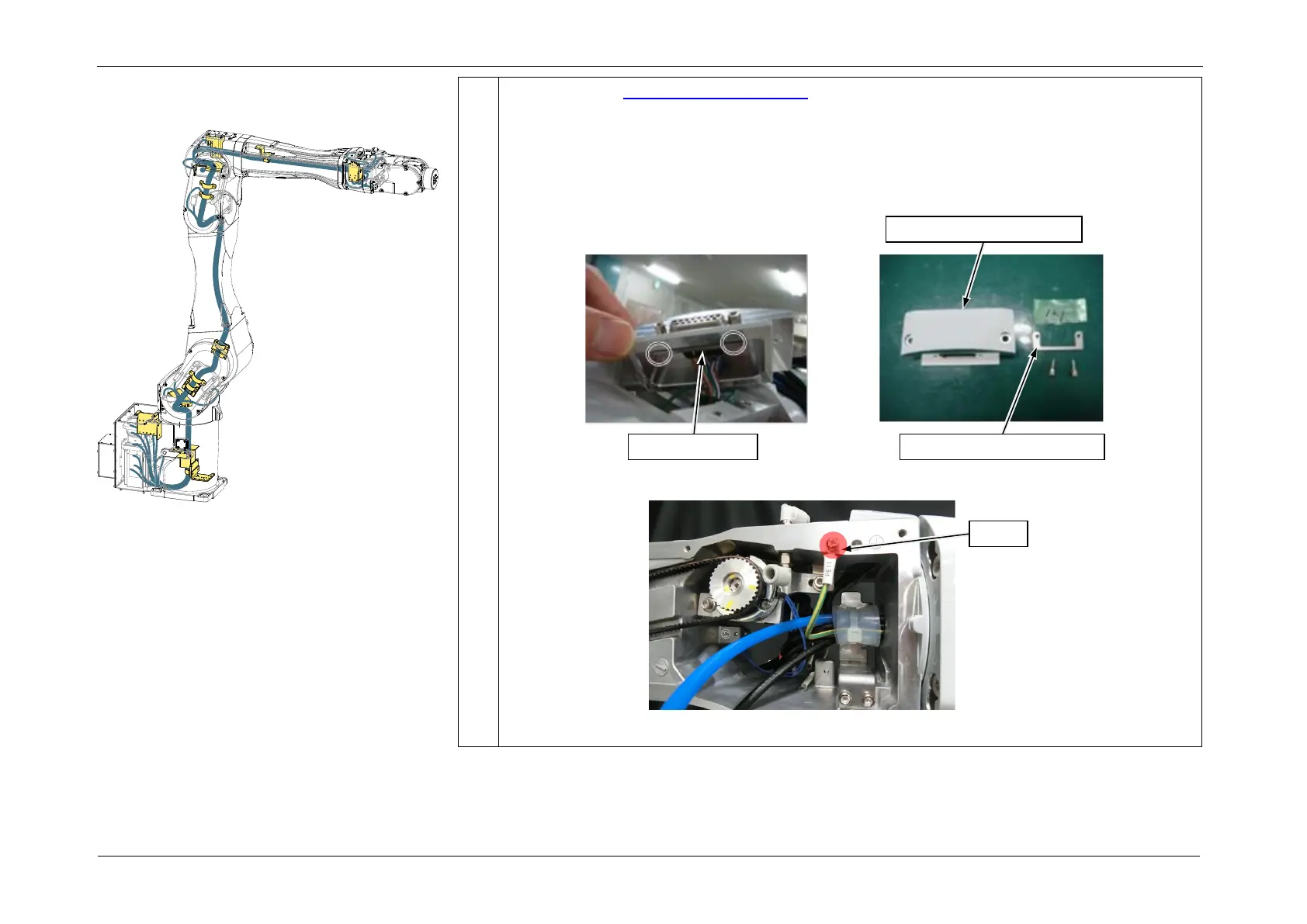

6. Remove the Arm4 D-sub attachment.
POINT
Remove the following parts from the Arm4 D-sub attachment.
• Standard model/Cleanroom model: D-sub connector, D-sub connector fixing plate
• Protection model: D-sub connector
7. Disconnect the Ground Wire (PE11).
PE11
D-sub connector
D-sub connector fixing plate
Arm4 D-sub attachment
Removing the Cable Unit
