Attach the grease plug to the Joint #5 grease inlet.
POINT
If the grease plug is damaged or deteriorated, replace it with a new one.
Joint #6 Reduction Gear Unit

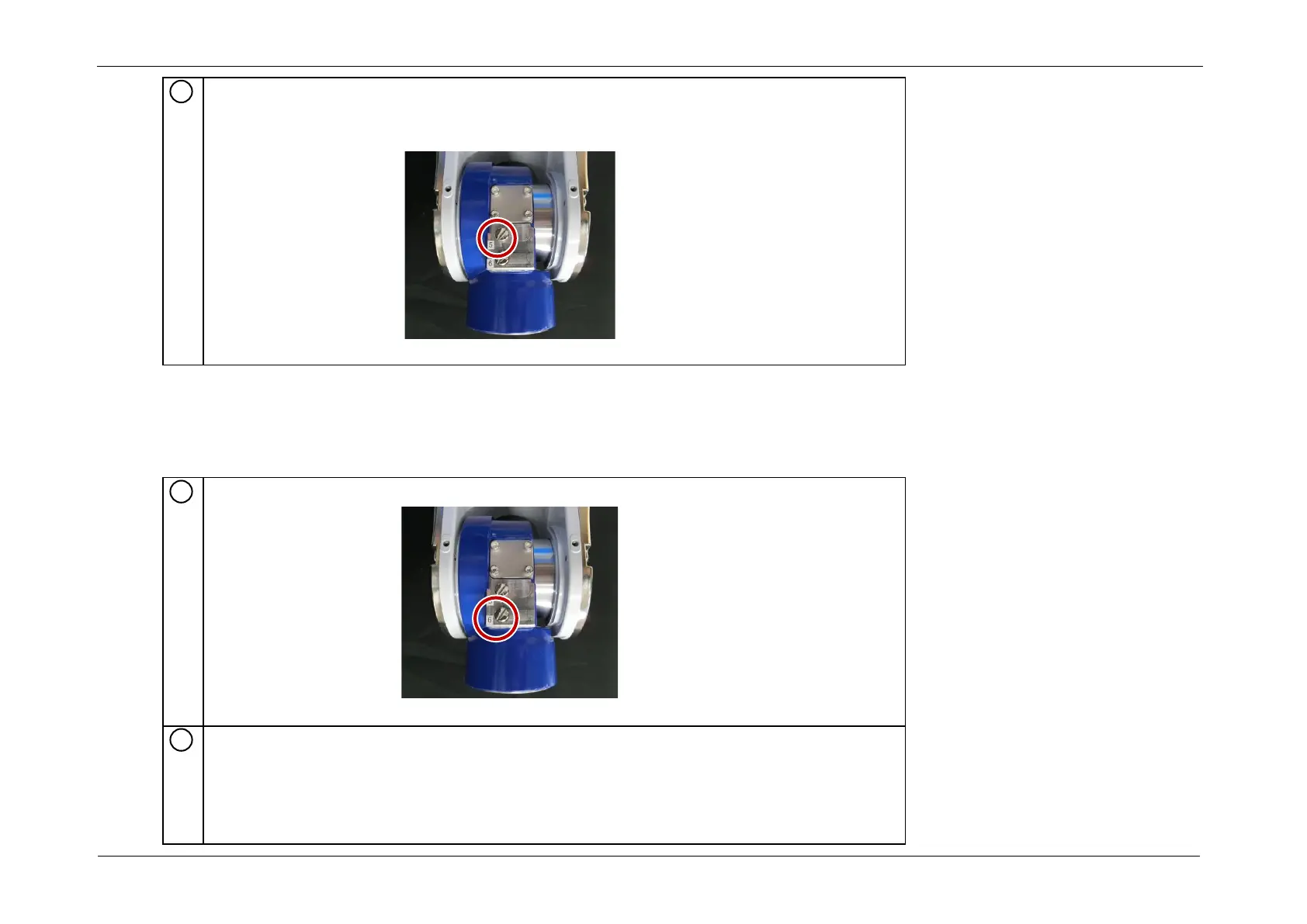

Remove the grease plug from the Joint #6 grease inlet of the Arm #5.
Attach the grease nipple to the Joint #6 grease inlet.
CAUTION
The grease plug attaching hole located near the label with “6” printed is the Joint #6
grease inlet.
Be careful not to confuse it with the Joint #5 grease inlet.
5
1
2
