POINT

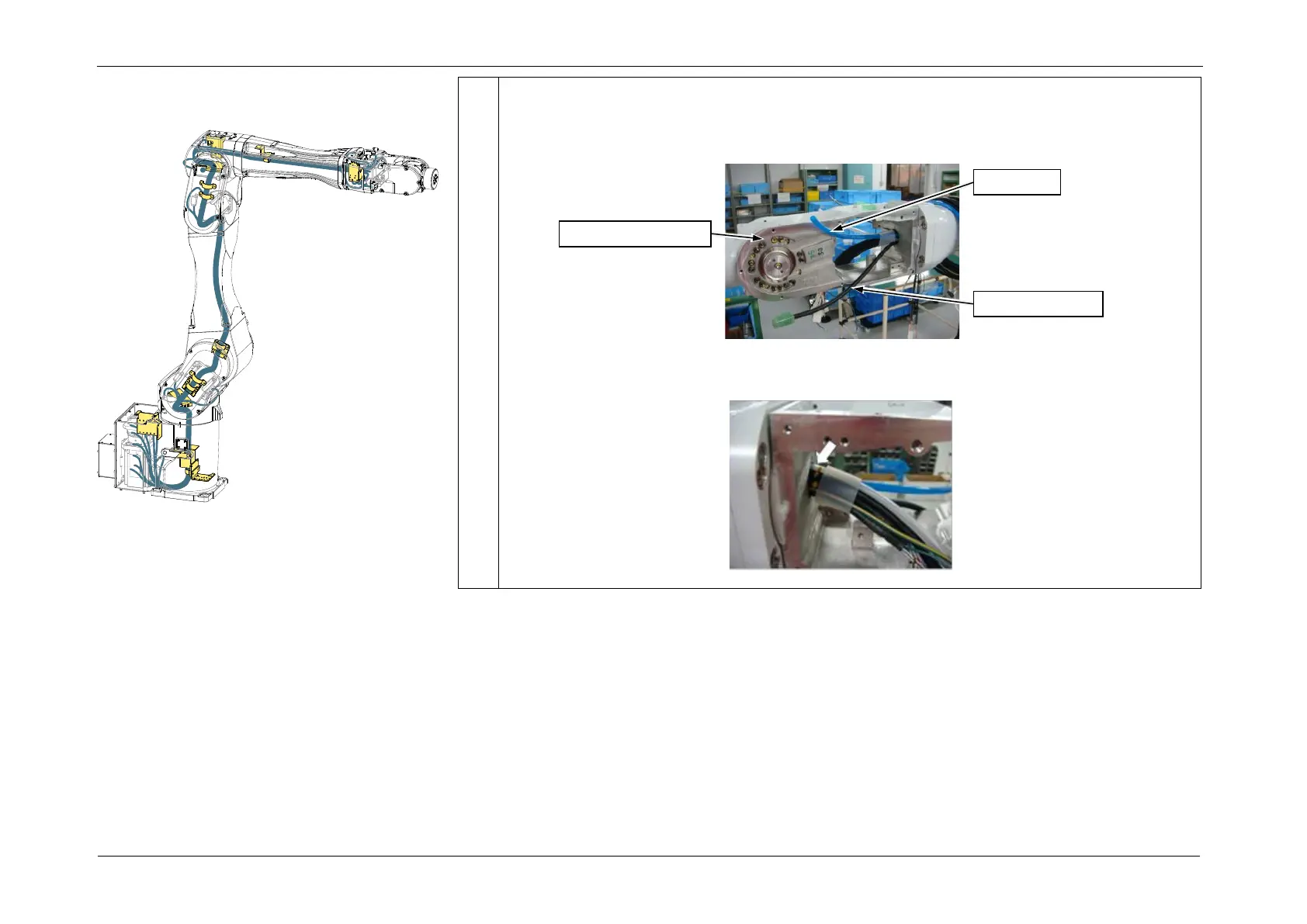

Bring the Ethernet cable and Air Tube out of the Arm4 J5 Reduction Gear side, as shown
in the figure, and bring the remaining cables out of the J6 Reduction Gear side.
5. Align the mark on the cable with the arrow on Arm4.
Ethernet cable
Air Tube
J5 Reduction Gear
Installing the Cable Unit
