Secure the Cable Unit to Arm4.

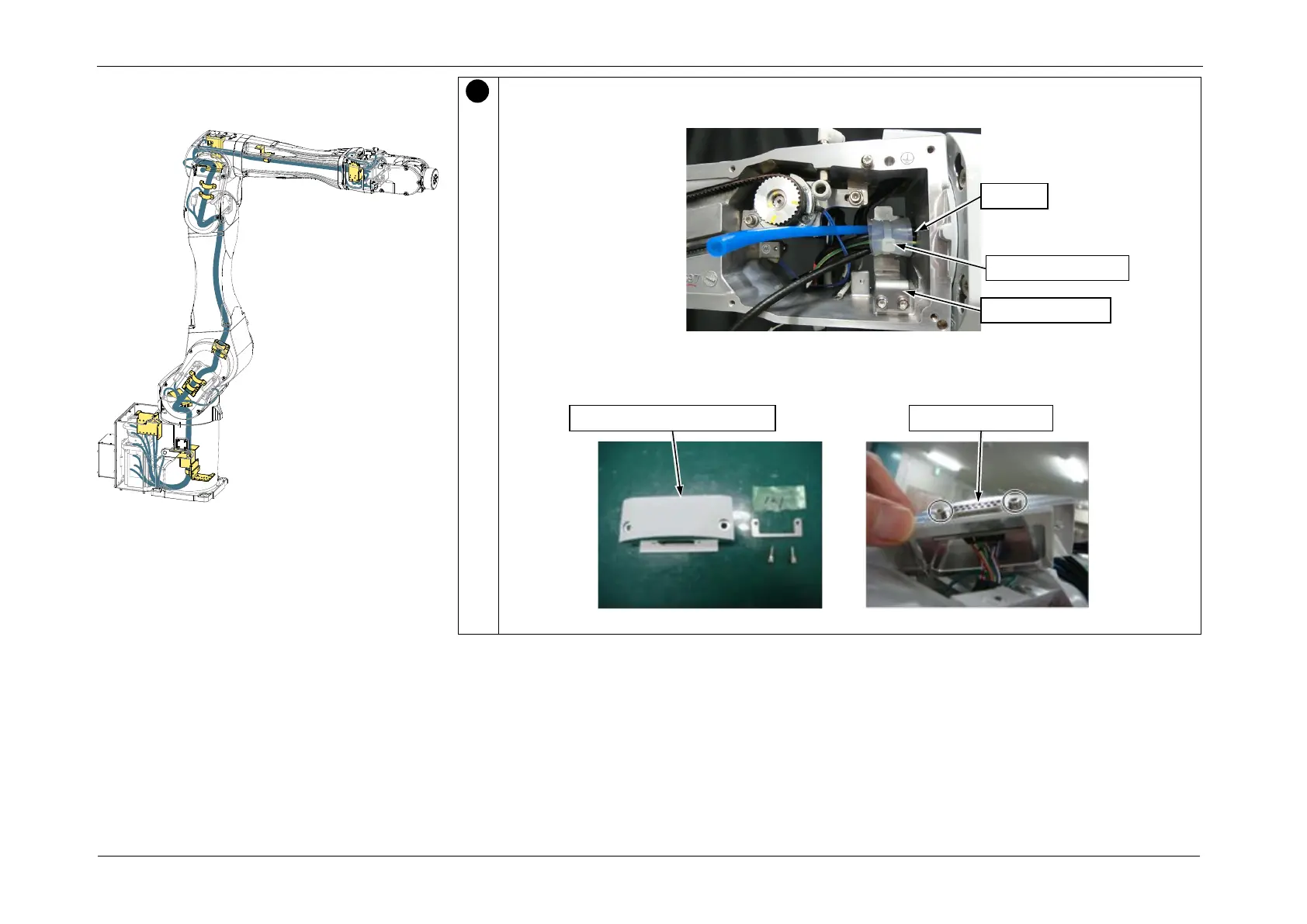

1. Secure the cables to the cable fixing plate using wire ties.
2. Install the D-sub connector on the Arm4 D-sub attachment.
2
Cables
Wire tie (AB300)
Cable fixing plate
D-sub connector
Arm4 D-sub attachment
Installing the Cable Unit
