C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-261 Rev.1

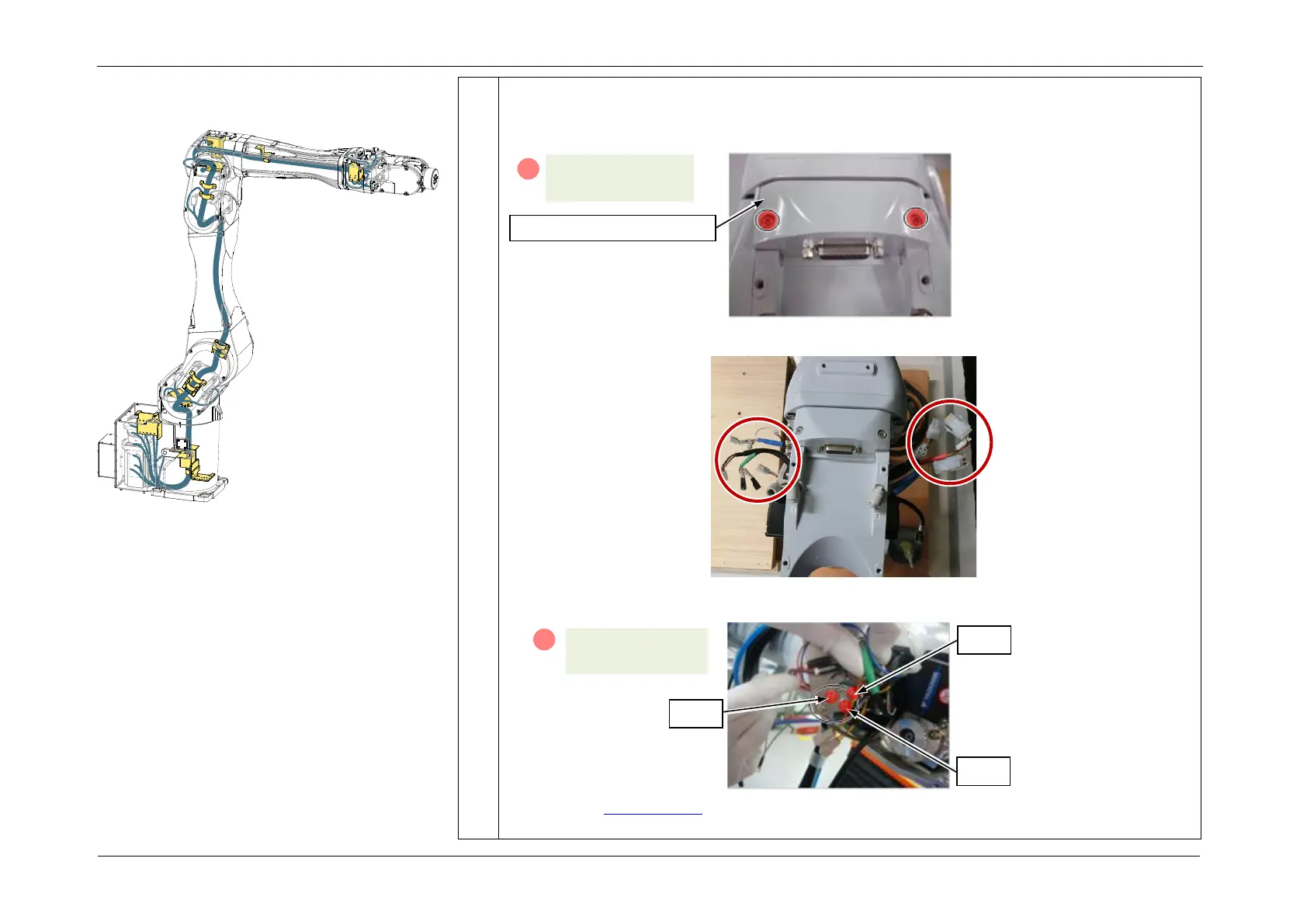

3. Install the Arm4 D-sub attachment.
CAUTION
Be careful not to let the cables get pinched in the attachment.
4. Connect the J5 Motor Connectors (CN151, CN351, CN451, CN460).
5. Attach the Ground Wires (FB14, FB15, FB17) inside Arm4 to the cable protection plate.
6. Install the J6 Motor unit.
Perform steps  to .
S01: 2-M4x10
(4.0 +/- 0.2 N⋅m)
A
Arm4 D-sub attachment
A
FB14
FB15
FB17
S04: 3-M4x6
(0.9 +/- 0.1 N⋅m)
Installing the Cable Unit
