Joint #6 Bevel Gear

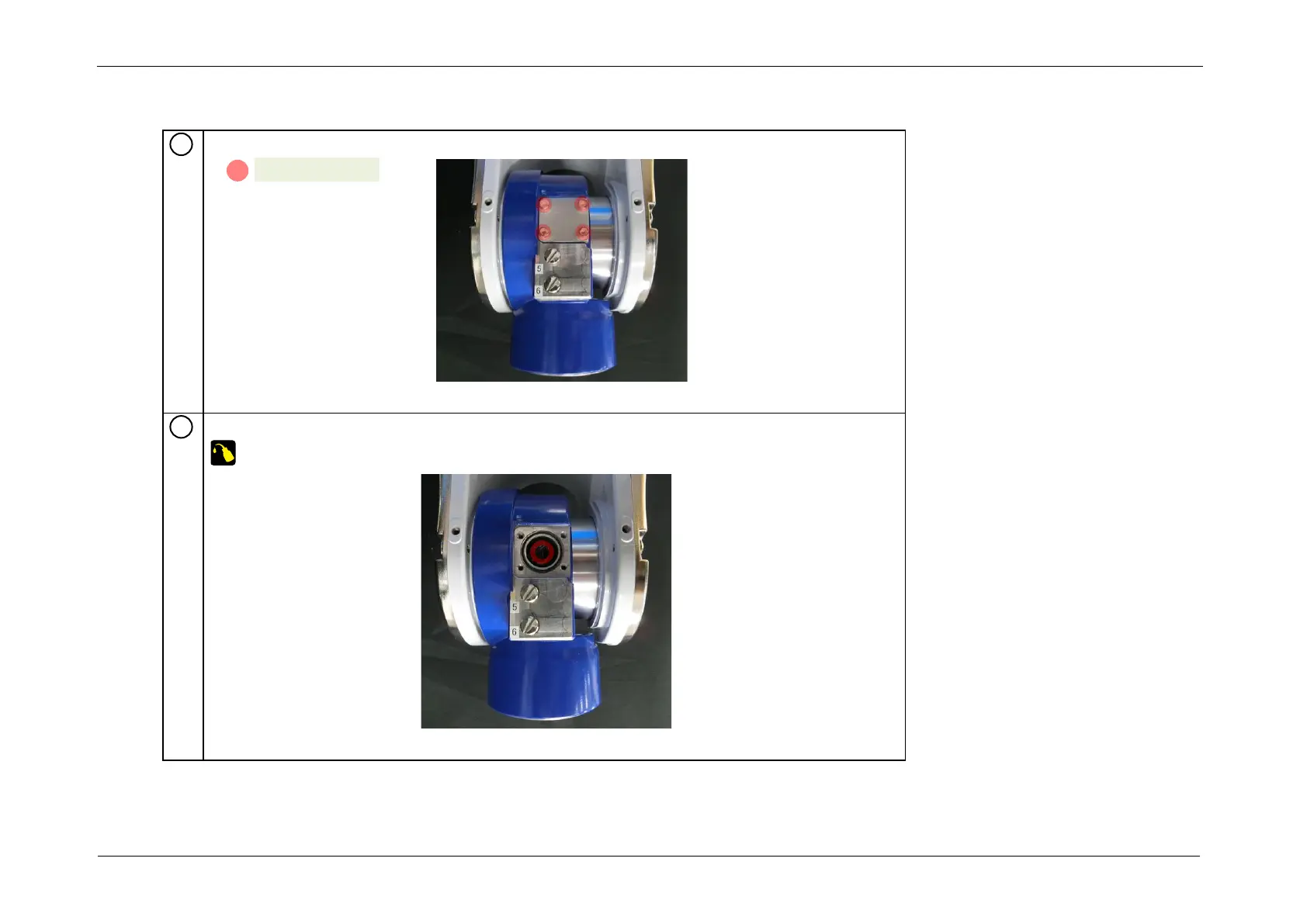

Remove the Arm #5 grease inlet cover.
Apply grease to the mating surface of the bevel gear inside the Arm #5.
SK-2: 2 g
1
A
S01: 4-M3x6
2
