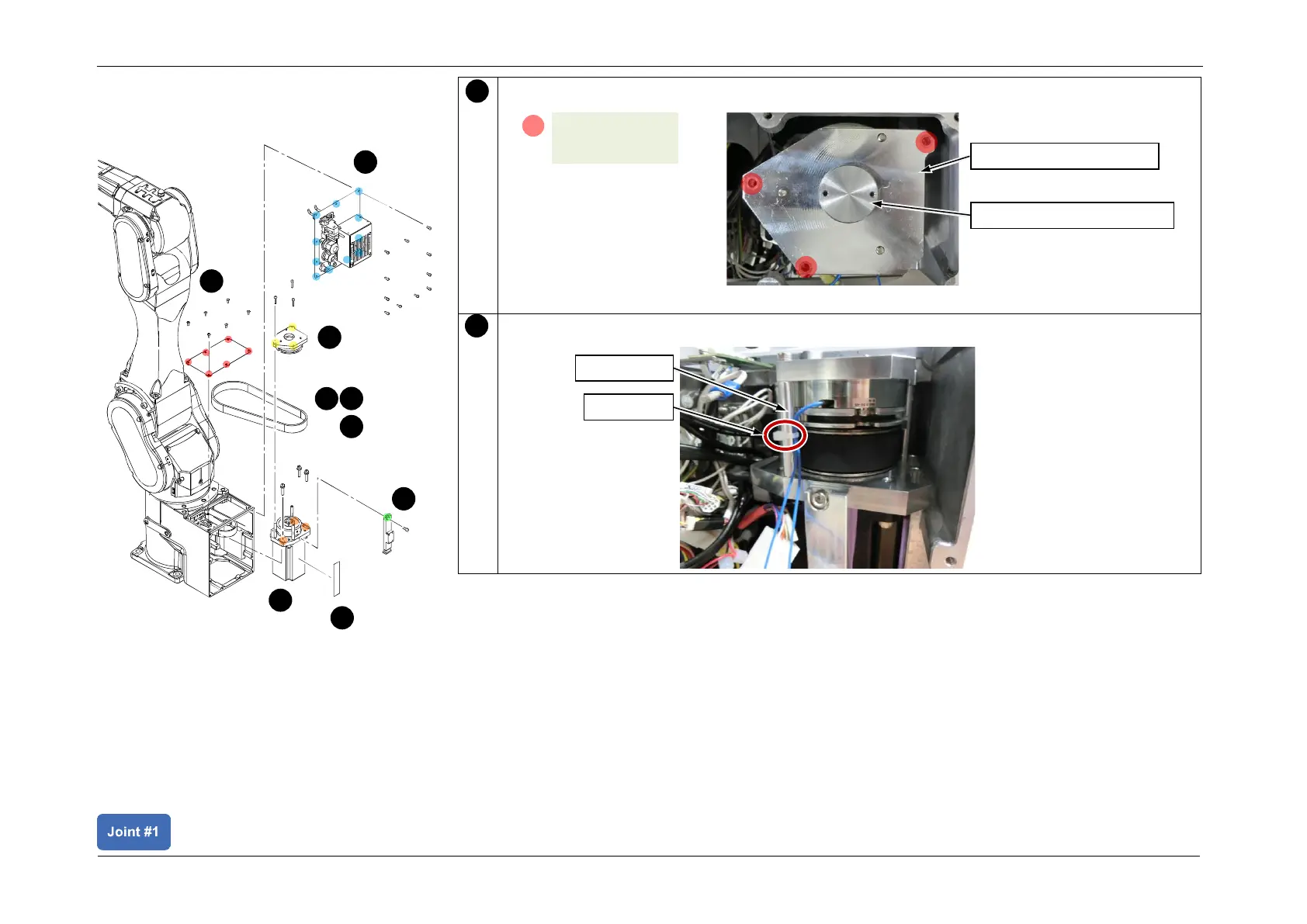

Secure the J1 brake plate, and remove the J1 brake positioning jig.
Secure the brake cable to the J1 Motor Plate shaft with a wire tie (AB100).
6
J1 brake plate
A
S01: 3-M4x20
(4.0 +/- 0.2 N·m)
J1 brake positioning jig
Brake cable
Wire tie
7
Installing the Motor Unit
10
9
2
7
4
1
2
5
6
