C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-25 Rev.1

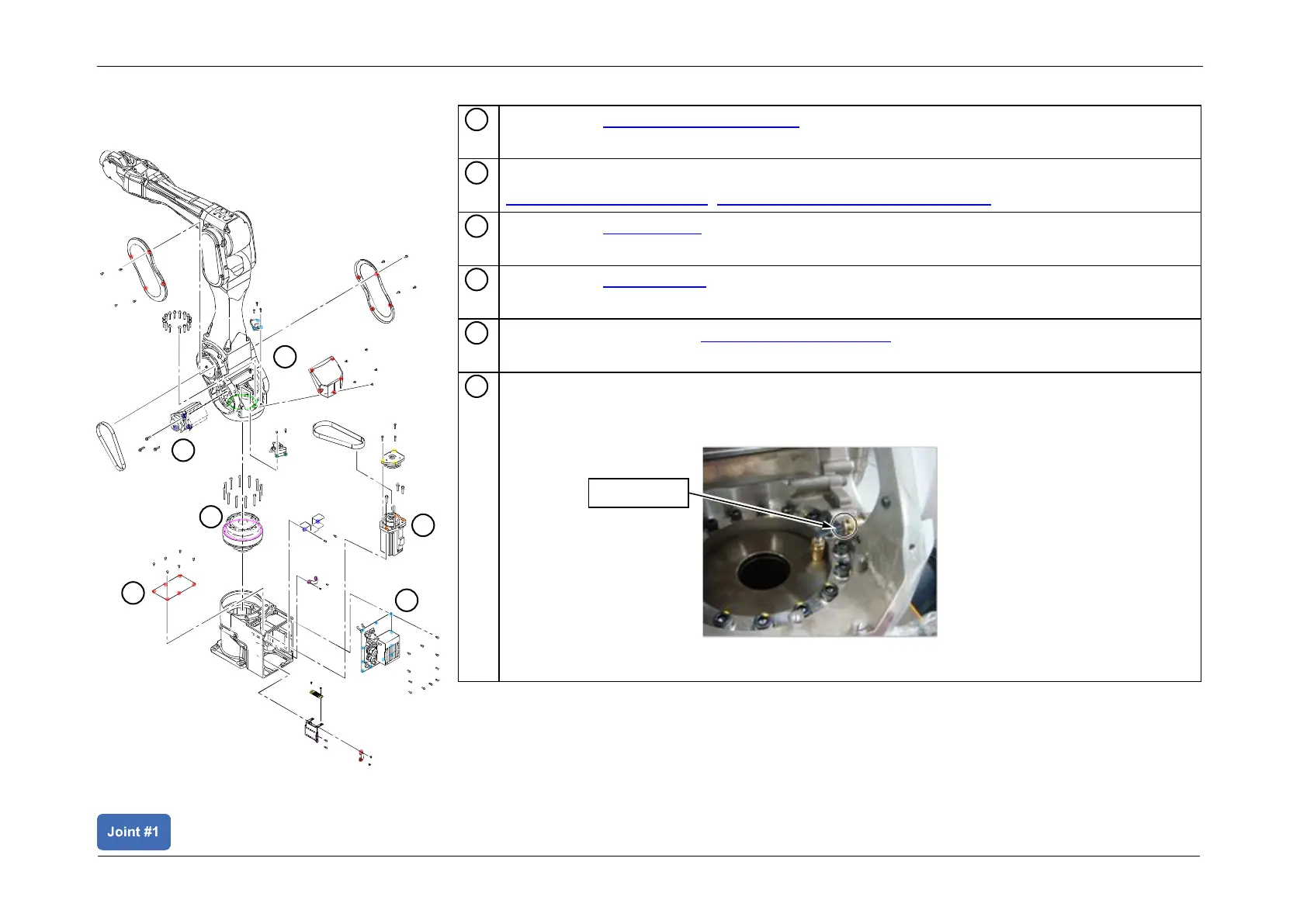

Removing the Reduction Gear Unit
Remove the Base Maintenance Cover.
Remove the Connector Plate.
M/C Cable Backward: C8L, M/C Cable Backward: C8XL, C12XL
Remove the J1 Motor unit.
Remove the J2 Motor unit.
Perform steps  to  of Removing the Cable Unit.
Remove Arm1.
1. Remove the grease tube on the Arm1 side.
1
2
3
4
5
6
Grease tube
1
2
3
4
6
7
