C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-27 Rev.1

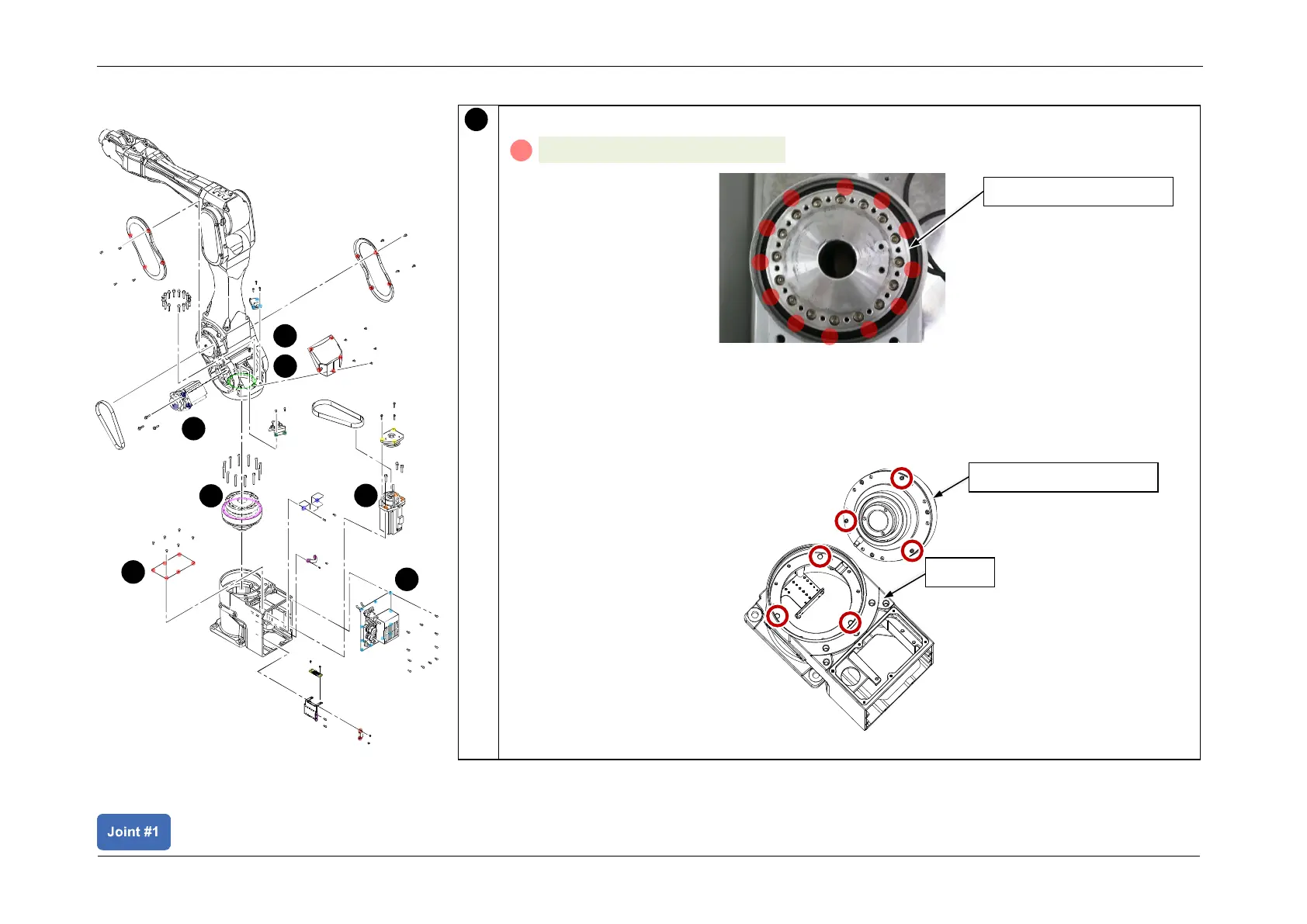

Installing the Reduction Gear Unit
Install the J1 Reduction Gear Unit.
POINT
Align the three bolt heads on the bottom of the J1 Reduction Gear Unit with the
indentations on the base, and set the Reduction Gear Unit on the base.
1
J1 Reduction Gear Unit
Base
A
S02: 12-M6x50 (18.0 +/- 0.9 N⋅m)
J1 Reduction Gear Unit
8
7
2
1
3
5
6
