C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-29 Rev.1

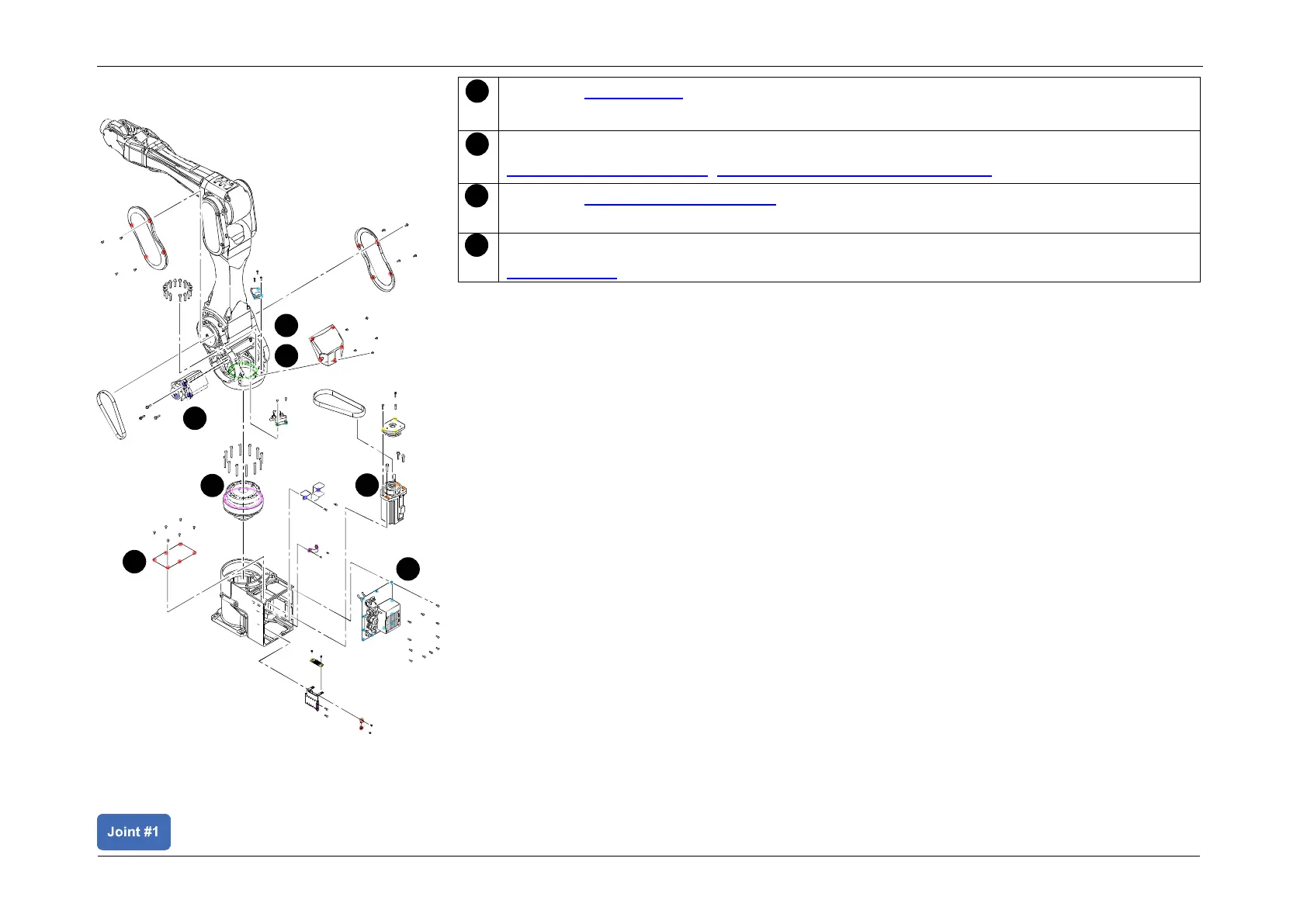

Install the J1 Motor unit.
Install the Connector Plate.
M/C Cable Backward: C8L, M/C Cable Backward: C8XL, C12XL
Install the Base Maintenance Cover.
After assembly, perform calibration of Joint #1.
3.2 Calibration
6
7
9
8
8
7
2
1
3
5
6
Installing the Reduction Gear Unit
