Installing the Brake

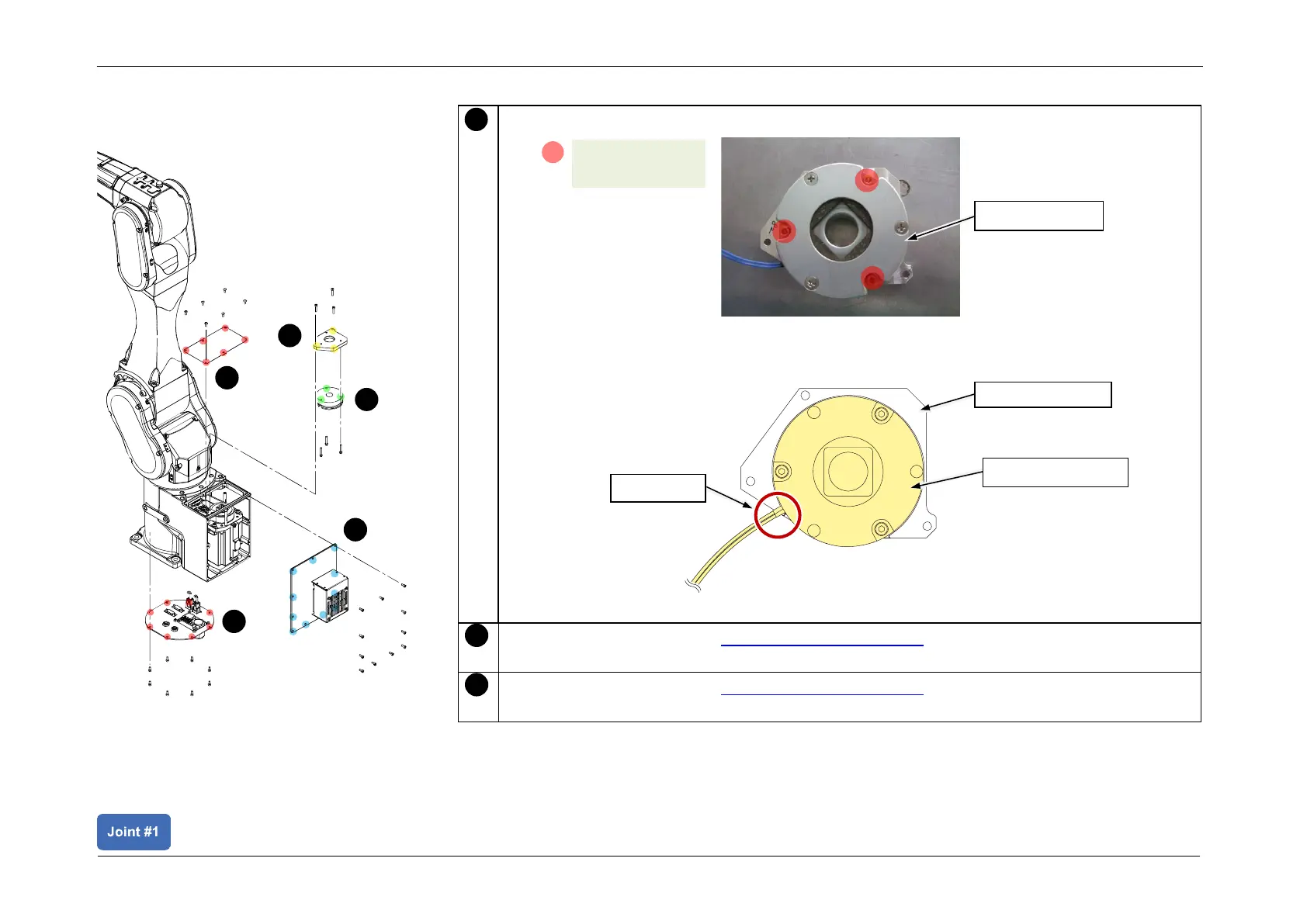

Install the J1 brake on the brake plate.
POINT
Install with the orientation shown in the figure.
Perform steps  and  for Installing the J1 Motor Unit of the "Joint #1 (M/C Cable
Backward)".
Perform steps  and  for Installing the J1 Motor Unit of the "Joint #1 (M/C Cable
Downward)".
1
Brake plate
J1 brake
Brake cable
A
S01: 3-M4x25
(4.0 +/- 0.2 N⋅m)
J1 brake
3
3
2
1
3
2
3
