C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-51 Rev.1

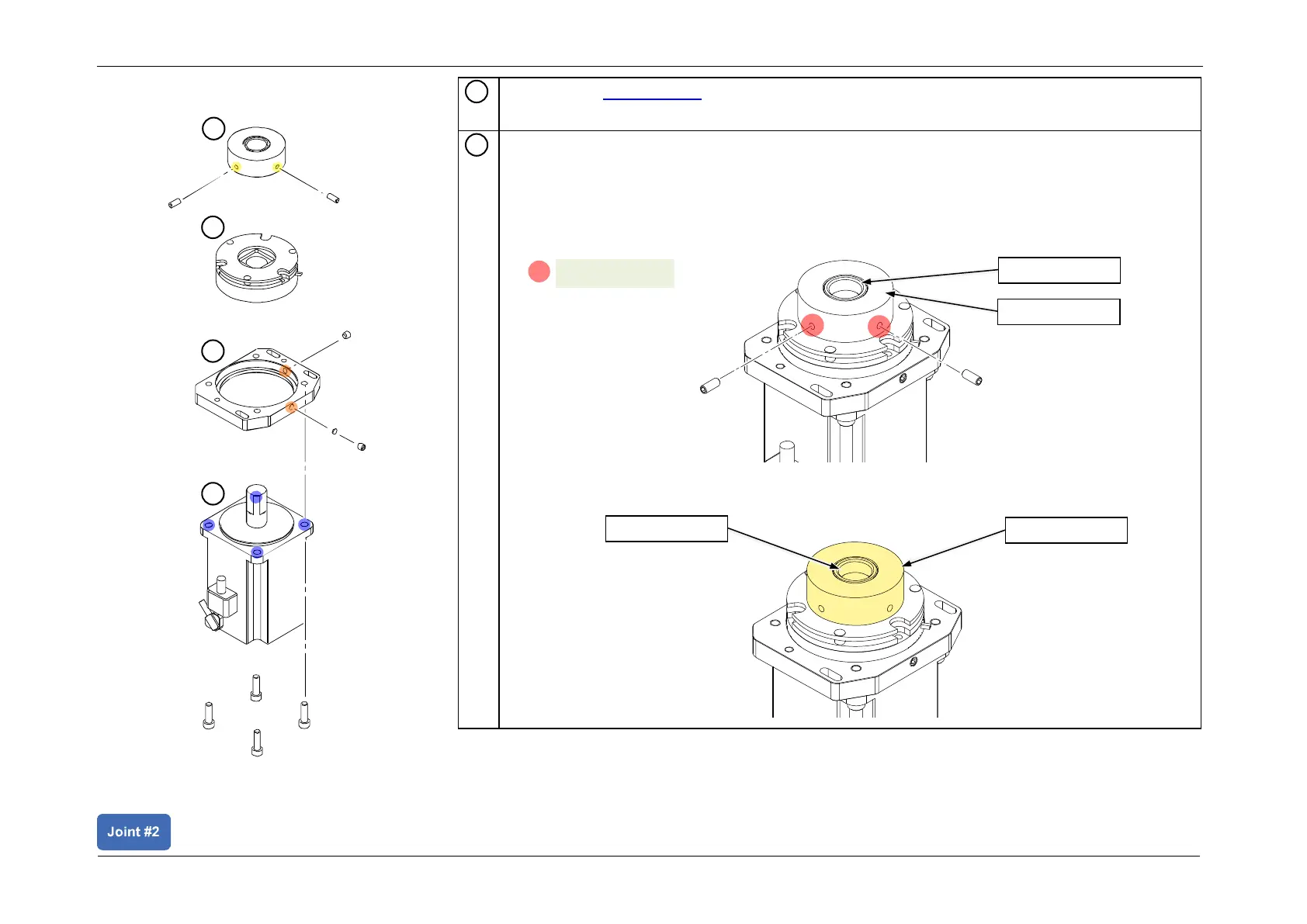

Remove the J2 Motor unit.
Remove the Motor Pulley unit.
POINT
Remove the Motor Pulley and the Brake Hub together.
1. Loosen the two screws on the D-cut surface of the motor shaft when viewing the J2
Motor unit from above.
2. Remove the Motor Pulley unit from the motor shaft.
1
2
Motor Pulley
Brake Hub
A
S05: 2-M5x12
Motor Pulley
Brake Hub
Motor Unit Disassembly
2
4
3
1
