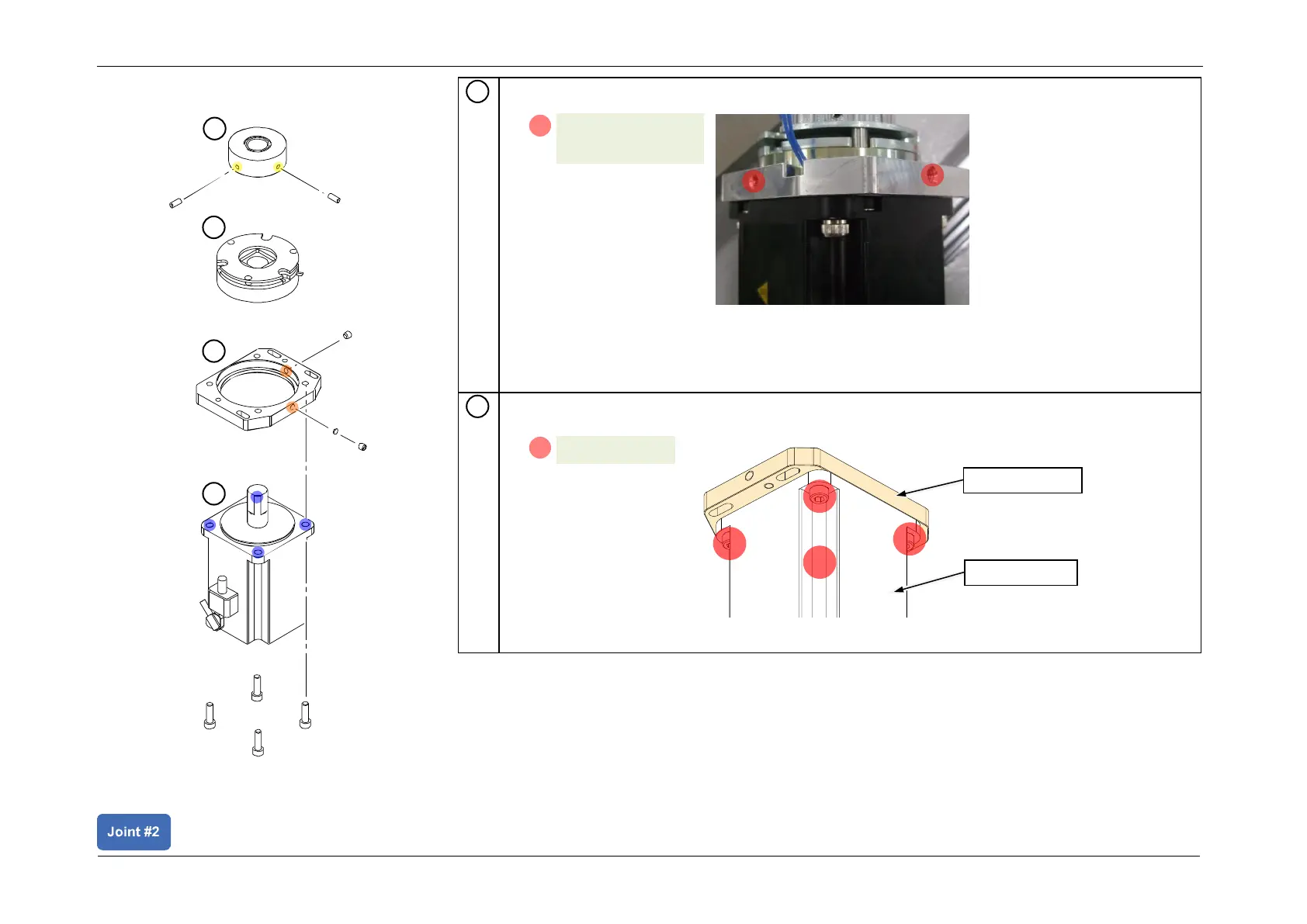

Remove the J2 brake.
CAUTION
A brass bushing is included on one of the set screws. Be careful not to drop and lose the
bushing.
Remove the Motor Plate.
3
A
S05: 2-M6x6
(Brass bushing x 1)
4
A
S01: 4-M6x20
Motor Plate
J2 Motor
Motor Unit Disassembly
2
4
3
1
