C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-53 Rev.1

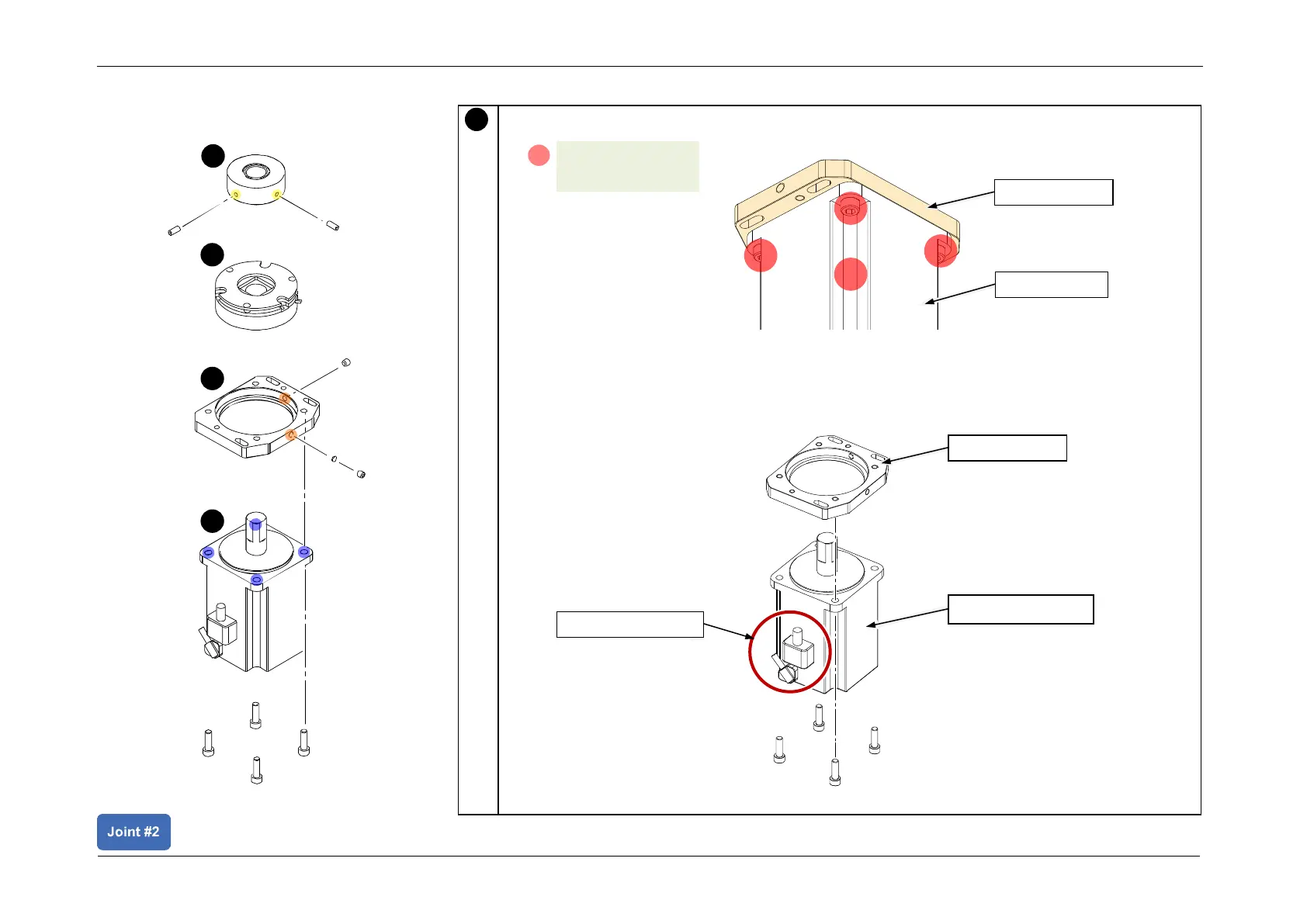

Motor Unit Assembly
Install the Motor Plate.
POINT
Attach the Motor Plate according to the orientation shown in the figure.
1
Motor Plate
Motor cable
J2 Motor
S01: 4-M6x20
(13.0 +/- 0.6 N⋅m)
A
Motor Plate
J2 Motor
3
1
2
4
