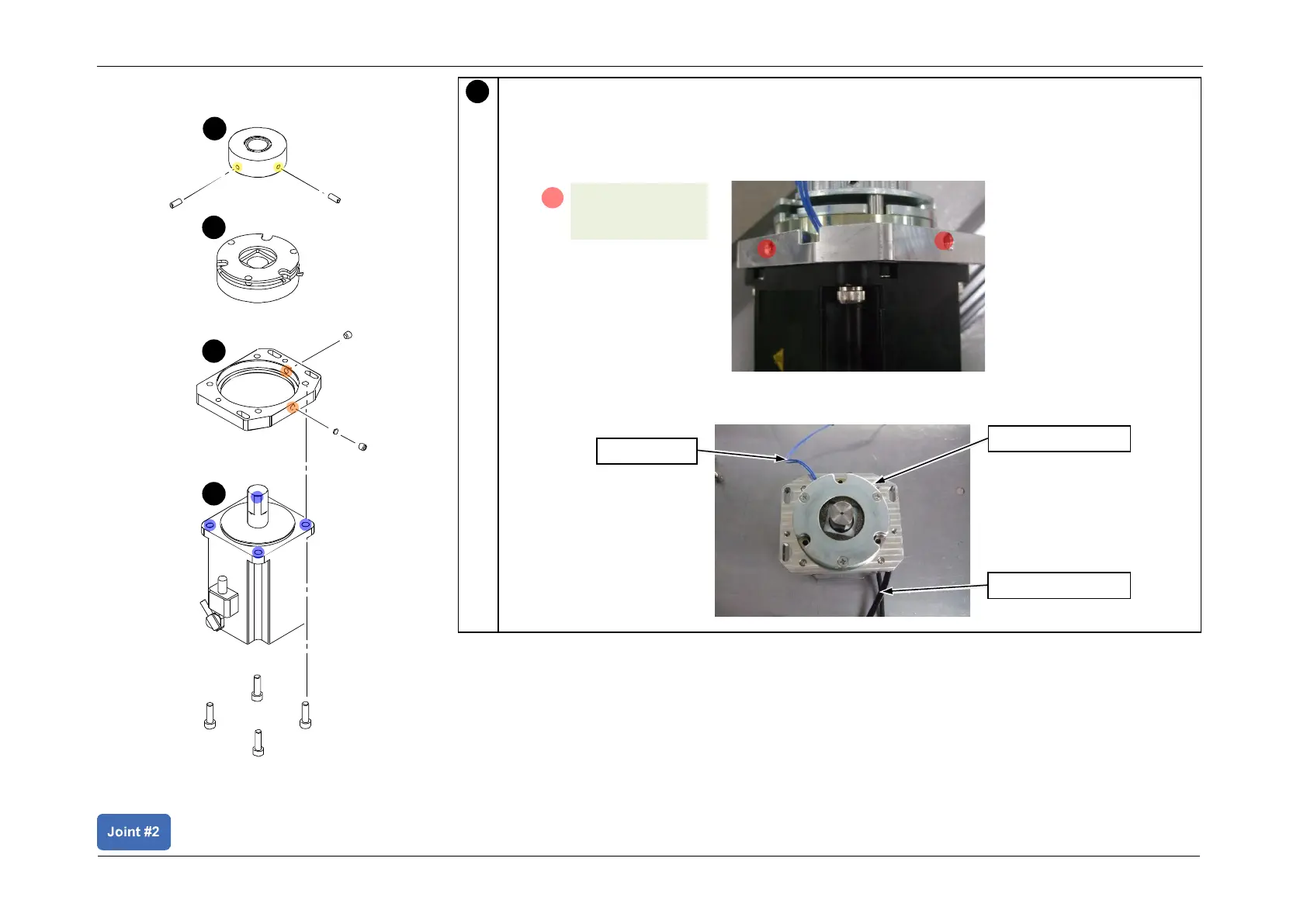

Install the J2 brake.
CAUTION
If the screw positions are incorrect or the bushing is not set, this may cause damage on
the side, and may result in the part being unable to be removed.
POINT
Install the J2 brake according to the orientation shown in the figure.
2
J2 brake
Motor cable
Brake cable
S05: 2-M6x6
(6.0 +/- 0.4 N⋅m)
A
3
1
2
4
Motor Unit Assembly
