C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-55 Rev.1

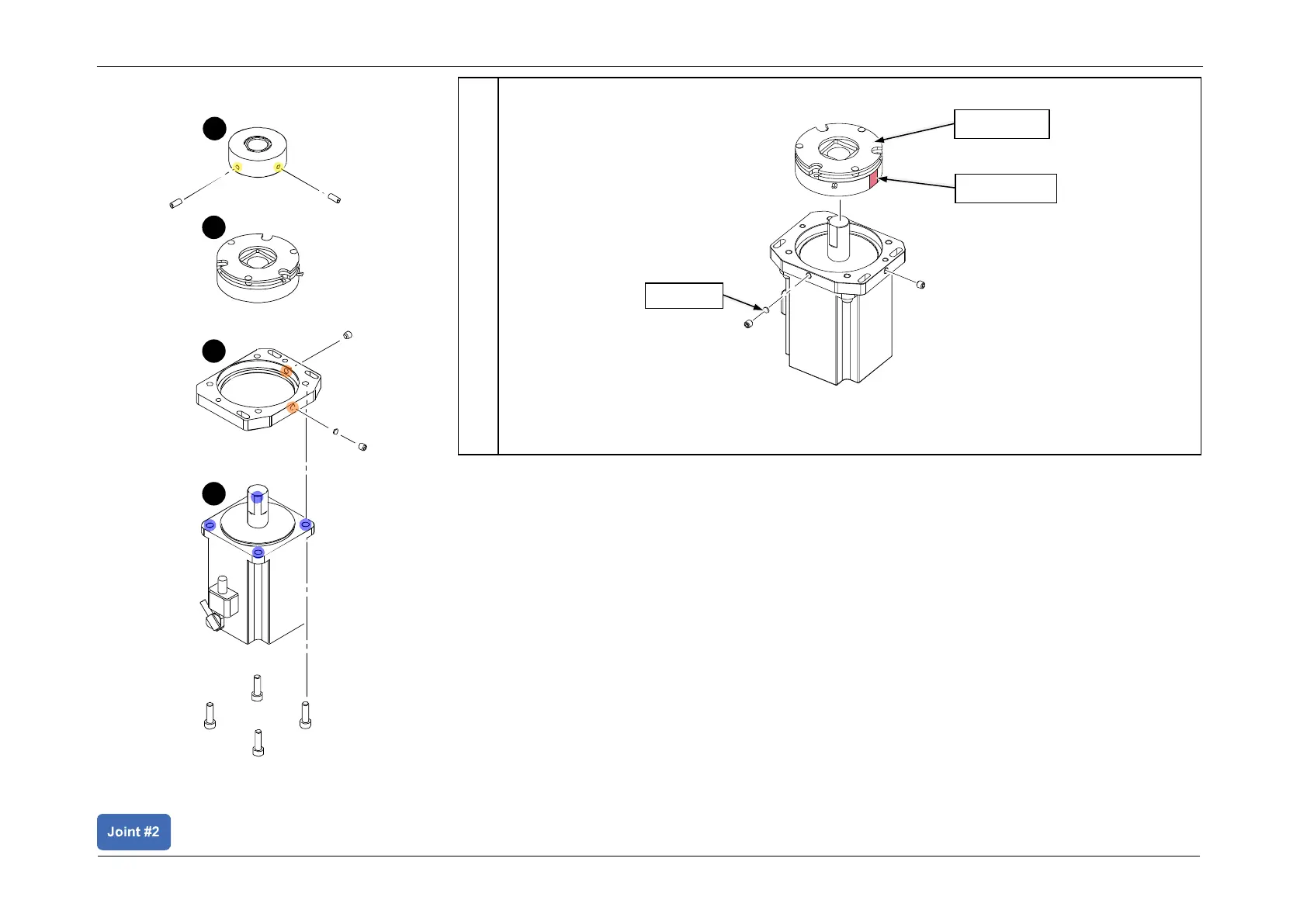

• Install the bushing on the side of the J2 brake without the D-cut surface.
• Tighten the screws while pressing the J2 brake against the Motor Plate.
J2 brake
D-cut surface
Bushing
3
1
2
4
Motor Unit Assembly
