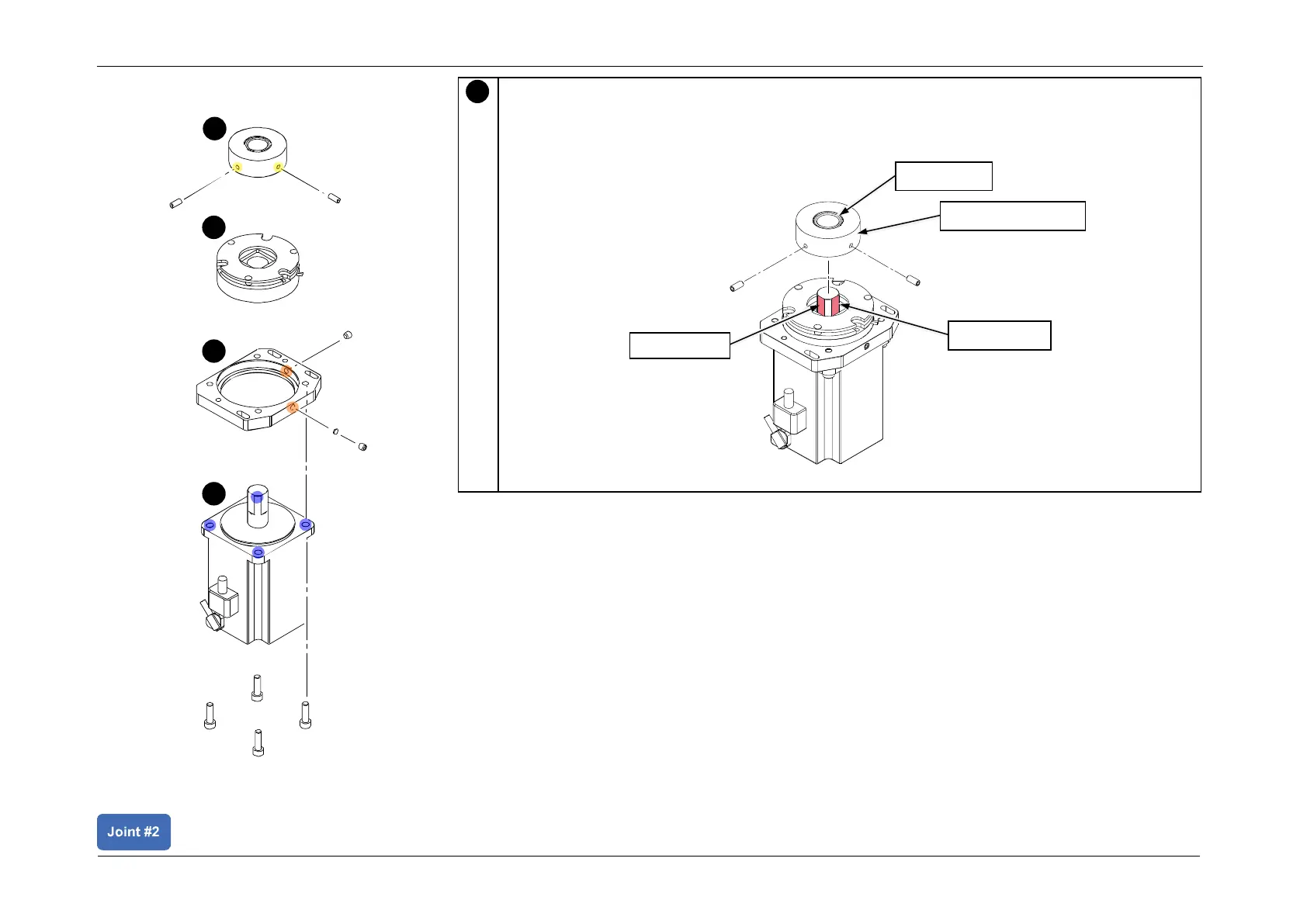

Install the Motor Pulley unit to the J2 Motor unit.
1. Insert the Motor Pulley so that the set screw positions align with the motor shaft D-cut
surfaces.
3
Motor Pulley
Brake Hub
D-cut surface
D-cut surface
3
1
2
4
Motor Unit Assembly
