Epson L1800 Service Manual

L1800 Revision A
Disassembly And Assembly Removing the Housings 51
Confidential

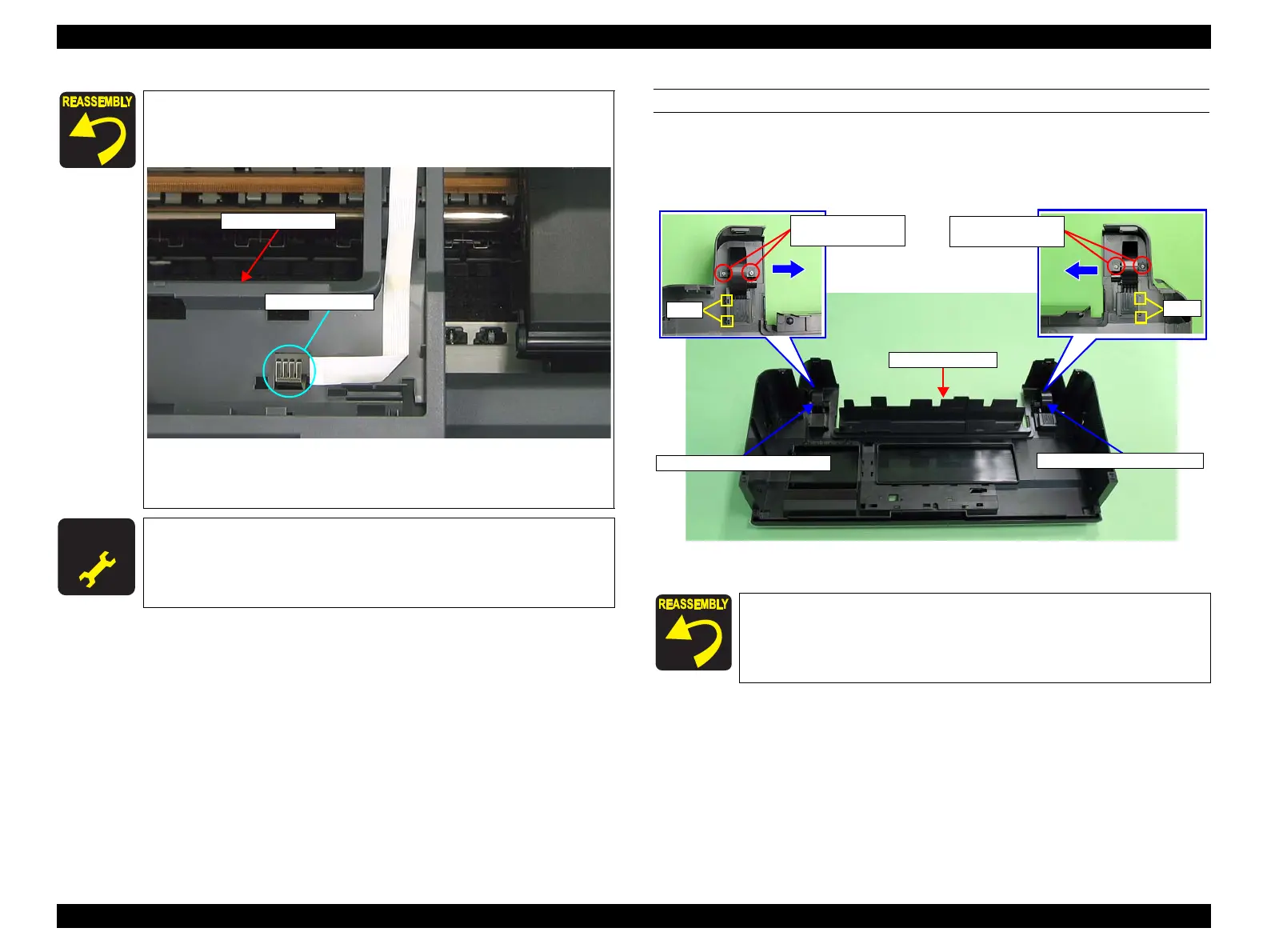

REMOVING THE PRINTER COVER
1. Remove the Upper Housing / Printer Cover. (p.50)
2. Remove the two C.B.P. M3 x 8 screws that secure Printer Cover Holder Left/
Right.
Figure 3-27. Removing the Printer Cover Holder Left/Right
 Route the Panel FFC correctly as shown in Figure 3-21.
 Install the Upper Housing so that the Grounding Plate properly
protrudes through the cutout of the Upper Housing.
Figure 3-26. Routing the Panel FFC
 Tighten the screws in the order shown in Figure 3-25.
A D J U S T M E N T
R E Q U I R E D
After replacing the following parts, be sure to apply G-74 grease to the
area specified for each part.
 Upper Housing: See Figure 5-14 on page 139.
Upper Housing
Grounding Plate
Insert the tabs (two each on the left/right) shown in Figure 3-27 into
the holes on the Upper Housing.
Tabs
Tabs
4) C.B.P. M3x8
(6±1 kgf.cm)
4) C.B.P. M3x8
(6±1 kgf.cm)
Upper Housing
Printer Cover Holder Right
Printer Cover Holder Left

Epson L1800 Specifications

General

Style	Inkjet
Color	Black
Control Panel	-
Noise Level
Interface Connectors	10/100/1000BaseTX
Wireless Connectivity	Wireless LAN/WiFi Direct
Apple Macintosh OS X 10.5 or later; Linux	Windows 7
Mac OS® X 10.6.8 – 10.10.x8	Windows 7
MPT: Min. A6R - Max. A4R (Legal)	DL (Envelope)
MPT: Min. A6R – Max. A4 (Legal)	5 in x 7 in
Duplex Printing: A4 / Letter / Oficio / Folio / Legal / JIS B5 / ISO B5 / Executive / Statement	C6 (Envelope)
Manual Feed Slot: Letter	A6
Functions	Scan
Features	Creative Print mobile app
Printing Method	Monochrome
Nozzles	-
Print Resolution	Up to 5760 x 1440 dpi (mono) / up to 5760 x 1440 dpi (color)
Scanner Type	-
Scan Formats	-
Copy Modes	-
Max Copies	-
Copy Size	-
Copy Scale	-
Power Consumption	6 Watt (Ready)
Battery Life	-
Battery Capacity	-

Weight and Dimensions

Depth	322 mm
Height	215 mm
Width	705 mm
Net Weight	24.62 kg
