DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 111
Confidential
5. Remove the three screws, and remove the Film Holder.
A) Silver M3x8 Cup S-tite screw: 3 pcs
Figure 3-59. Removing the Film Holder
6. Remove the three screws.
B) Silver M3x10 P-tite screw: 2 pcs
C) Silver M3x6 machine screw: 1 pcs

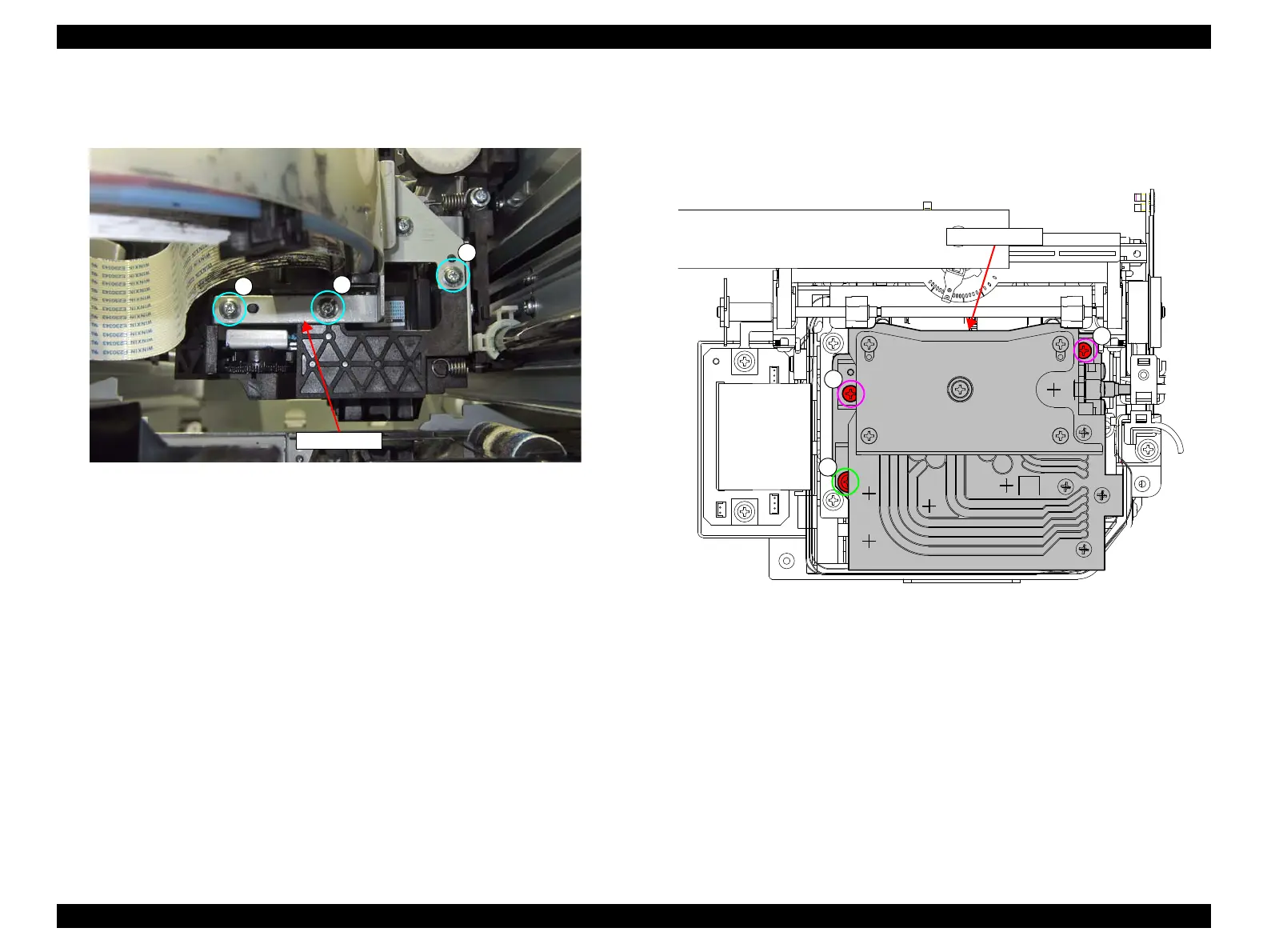

Figure 3-60. Removing the DAMPER KIT (1)
Film Holder
A
A
A
DAMPER KIT
B
B
C
