SC-F2000 Revision C
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 112
Confidential

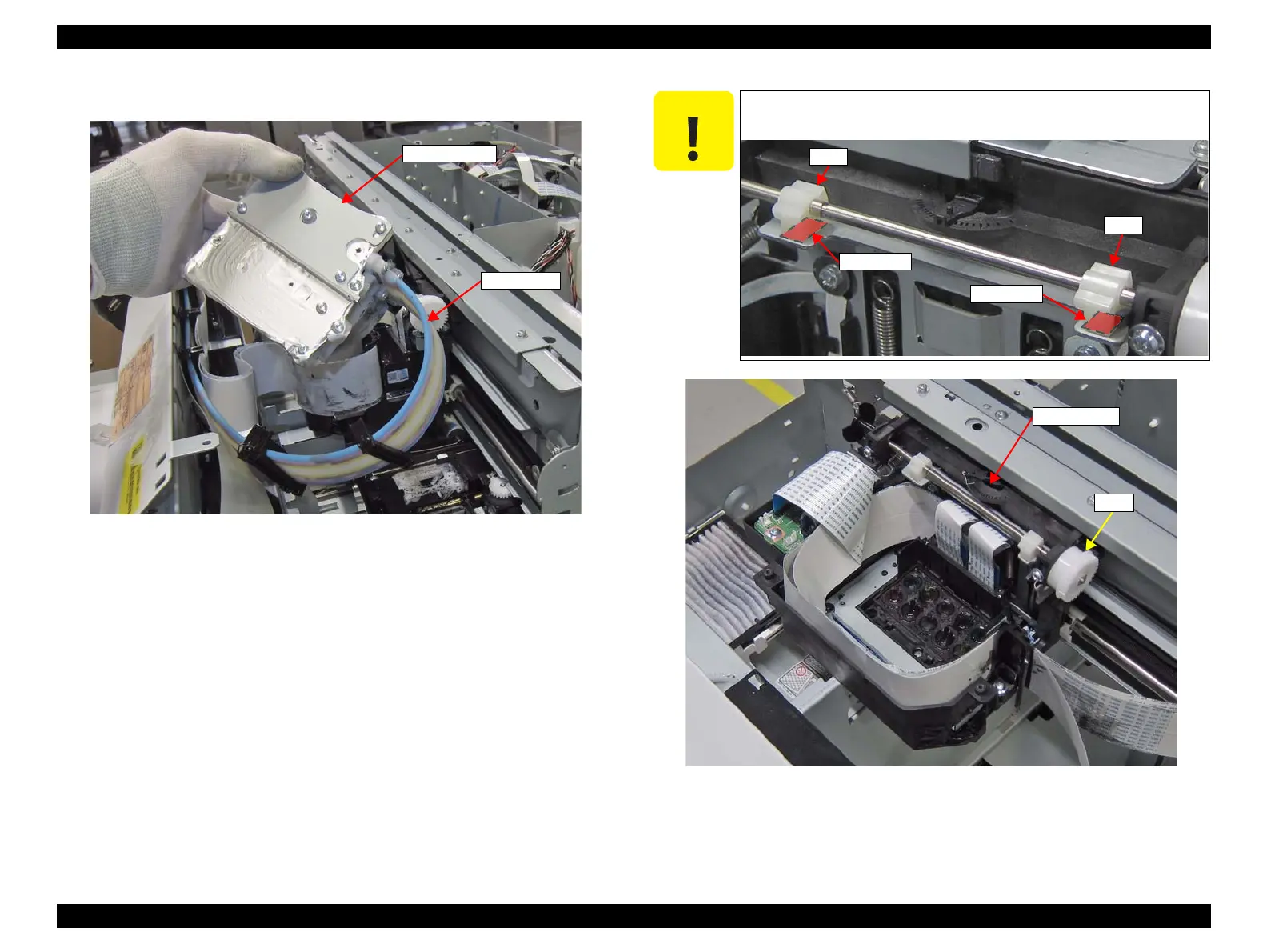

7. Remove the DAMPER KIT with the TUBE ASSY.
Figure 3-61. Removing the DAMPER KIT (2)
8. Move the CR Unit to the position shown below. (Be careful about ink leakage
from the INK TUBE.)
f
Figure 3-62. Moving the CR UNIT
DAMPER KIT
TUBE ASSY
C A U T I O N
 Do not rotate the gear show in Figure 3-62.
 Make sure the flat section of each cam comes on the bottom.
Cam
Cam
Flat section
Flat section
CR UNIT
Gear
