SC-F2000 Revision C
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 126
Confidential
10. Release the cable from the clamp.
11. Disconnect the relay connector.

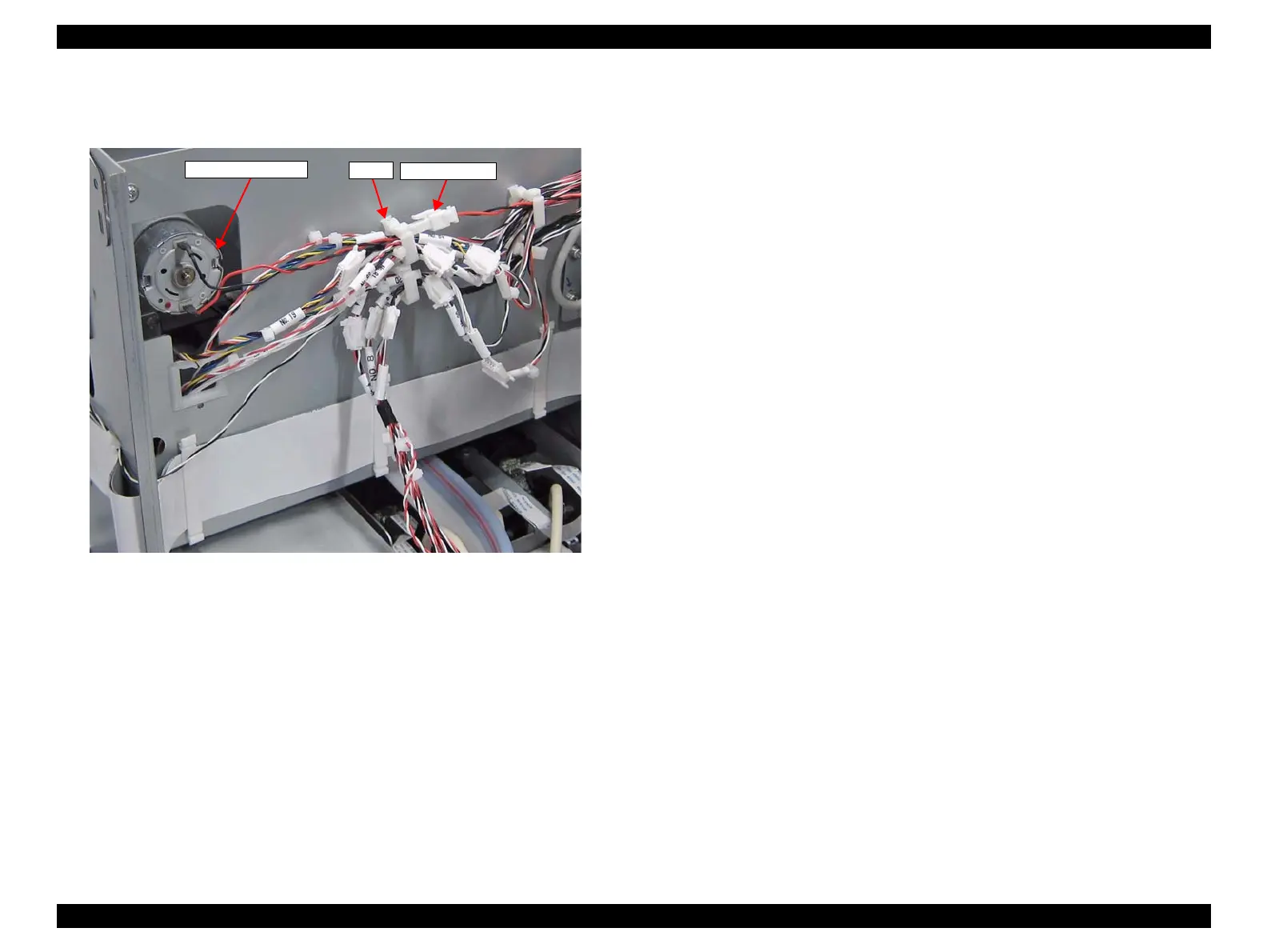

Figure 3-90. Removing the CR MOTOR ASSY (2)
CR MOTOR ASSY
Clamp
Relay connector
