DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 130
Confidential
22. Remove the screw that secures the FFC Sub Holder.
D) Silver M3x8 P-tite screw with built-in washer: 1 pcs
23. Remove the FFC Sub Holder from the HEAD FFC.
24. Disconnect the FFC from the connector (CN100) of the CR SUB BOARD, and
release the HEAD FFC from the CR UNIT.

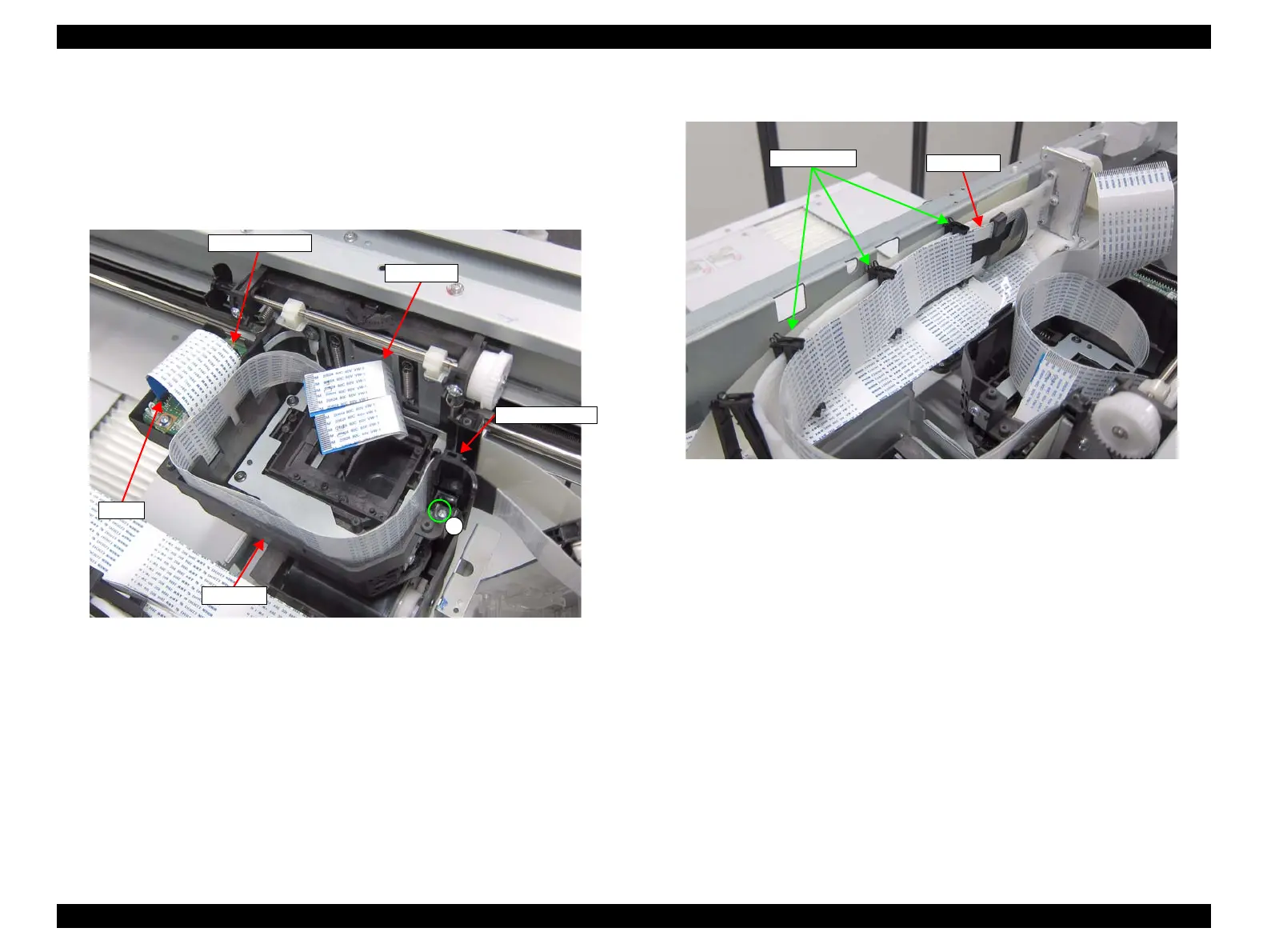

Figure 3-95. Removing the FFC Sub Holder
25. Remove the HEAD FFC from the three Cable Holder.
Figure 3-96. Releasing from the Cable Holders
26. Disconnect the HEAD FFC from the connectors (CN100, CN101, CN102) of the
MAIN BOARD.
27. Release the HEAD FFC from the ten FFC clamps, and pull out the HEAD FFC
from the two holes on the Main Frame.
D
FFC Sub Holder
HEAD FFC
CR SUB BOARD
CN100
CR UNIT
HEAD FFC
Cable Holder
