DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 135
Confidential
31. Pull the TUBE ASSY from the two holes on the Front Frame, and remove the
TUBE ASSY.
Figure 3-103. Removing the TUBE ASSY

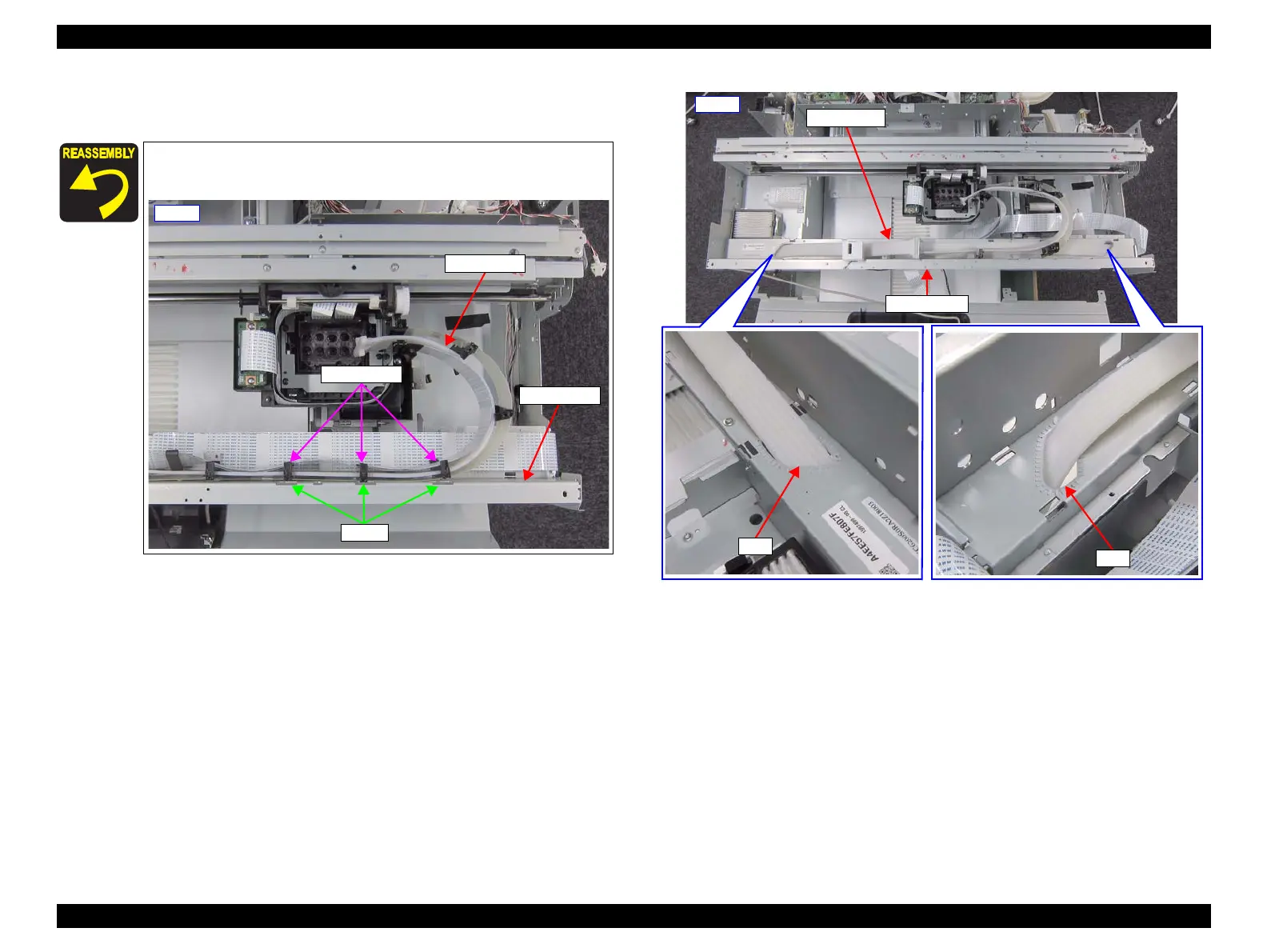

Set the three Cable Holders shown in the below figure to the center
positions of the three cutouts of the Front Frame.
TUBE ASSY
Cable Holder
Cutouts
Front Frame
Upper
Hole
Hole
TUBE ASSY
Upper
Front Frame
