SC-F2000 Revision C
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 137
Confidential

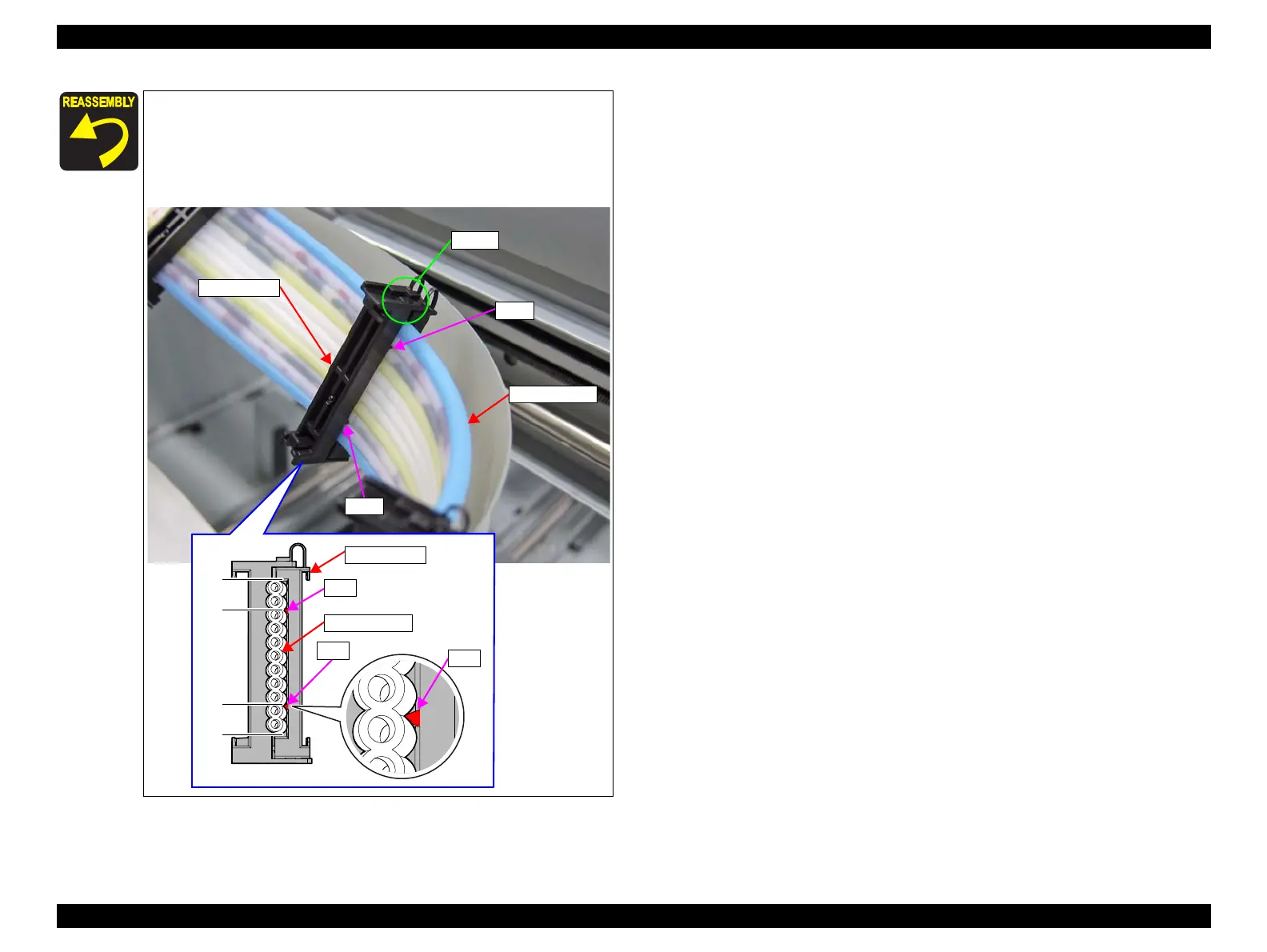

When attaching the Cable Holder, check the following.
• Engage the upper hook of the Cable Holder with the TUBE
ASSY correctly.
• Engage the tabs of the Cable Holder with the points on the
TUBE ASSY shown below correctly.
Hook
Tab
Tab
TUBE ASSY
Cable Holder
2
2
7
TUBE ASSY
Cable Holder
Tab
Tab
Tab
