SC-F2000 Revision C
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 140
Confidential
16. Remove the screw, and remove the FFC Holder.
E) Silver M3x8 Cup P-tite screw: 1 pcs
17. Disconnect the FFC from the connector (CN100) of the CR SUB BOARD, and
release the HEAD FFC.

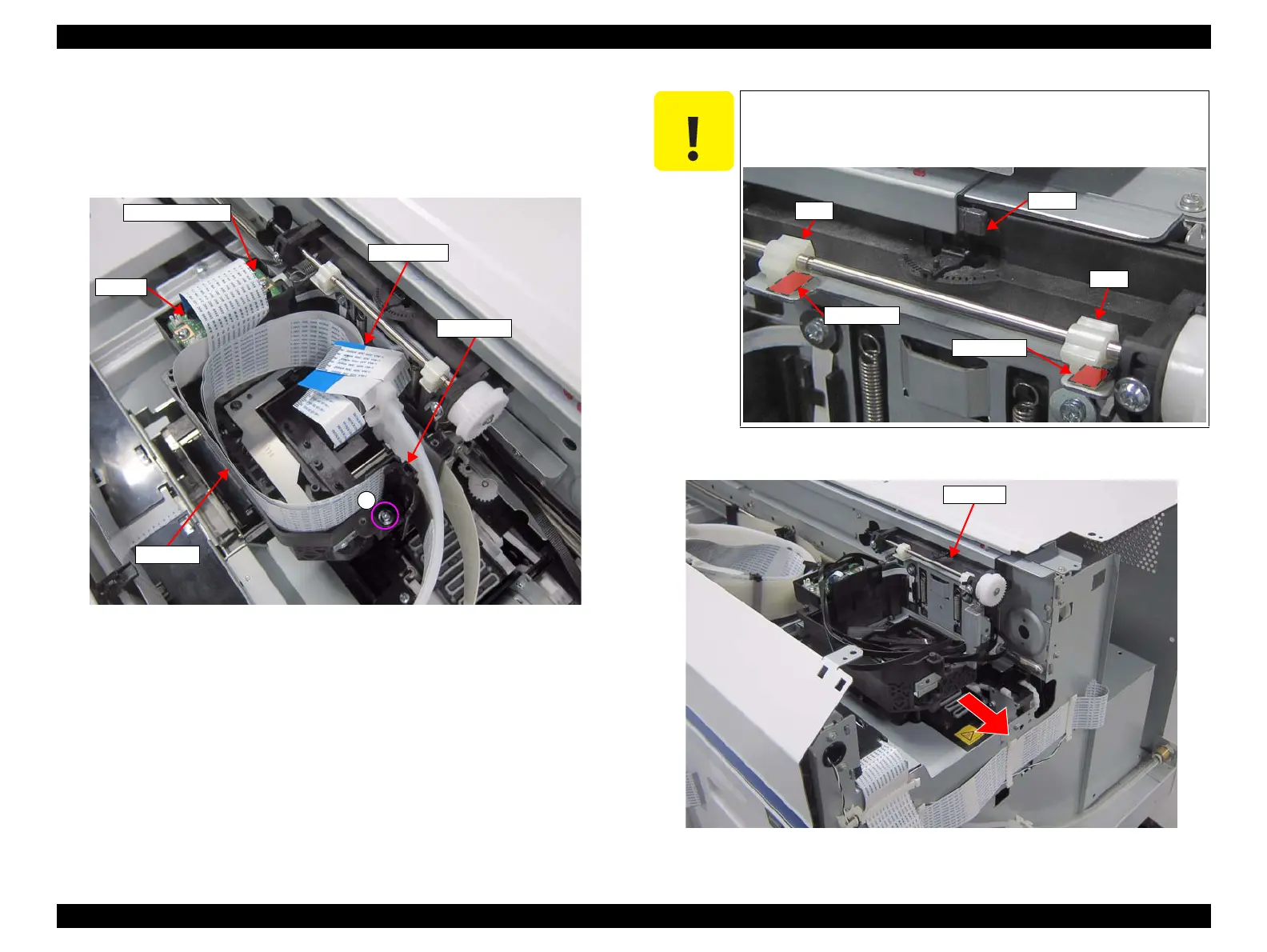

Figure 3-107. Removing the FFC Holder
f
18. Slide the CR UNIT to the right to remove it.
Figure 3-108. Removing the CR UNIT
FFC Holder
HEAD FFC
CR SUB BOARD
CN100
E
CR UNIT
When removing the CR UNIT in the next step, be careful to
engage the Slider inside of frame.
Make sure the flat section of each cam comes on the bottom.
Slider
Cam
Cam
Flat section
Flat section
To Next Page
