3.4.5.10 OIL PAD HOLDER
1. Unlock the CR UNIT. (p69)
2. Disengage the two hooks, and remove the OIL PAD HOLDER.

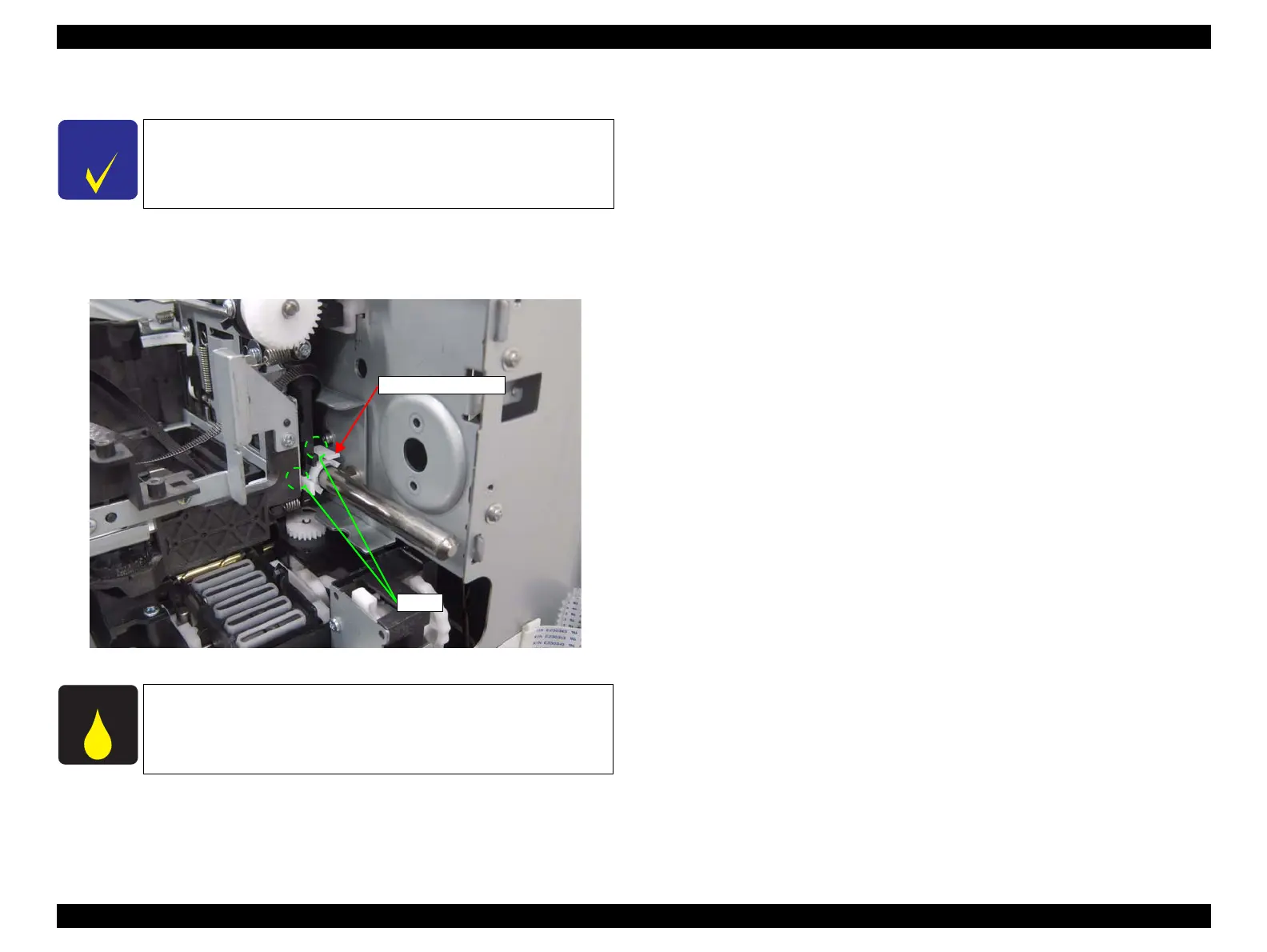

Figure 3-109. Removing the OIL PAD HOLDER
C H E C K
P O I N T
The procedure below is for disassembling the OIL PAD HOLDER
at the right. Use the same procedure for disassembling the left one.
Lubrication
Lubrication
When replaced with a new part, make sure to lubricate the new one
referring to “5.6 Lubrication” (p293).
OIL PAD HOLDER
Hooks
