15. Remove the four screws, and remove the LEFT INK HOLDER ASSY.
B) Silver M3x6 Cup S-tite screw: 3 pcs
C) Silver M3x6 Cup S-tite screw: 1 pcs

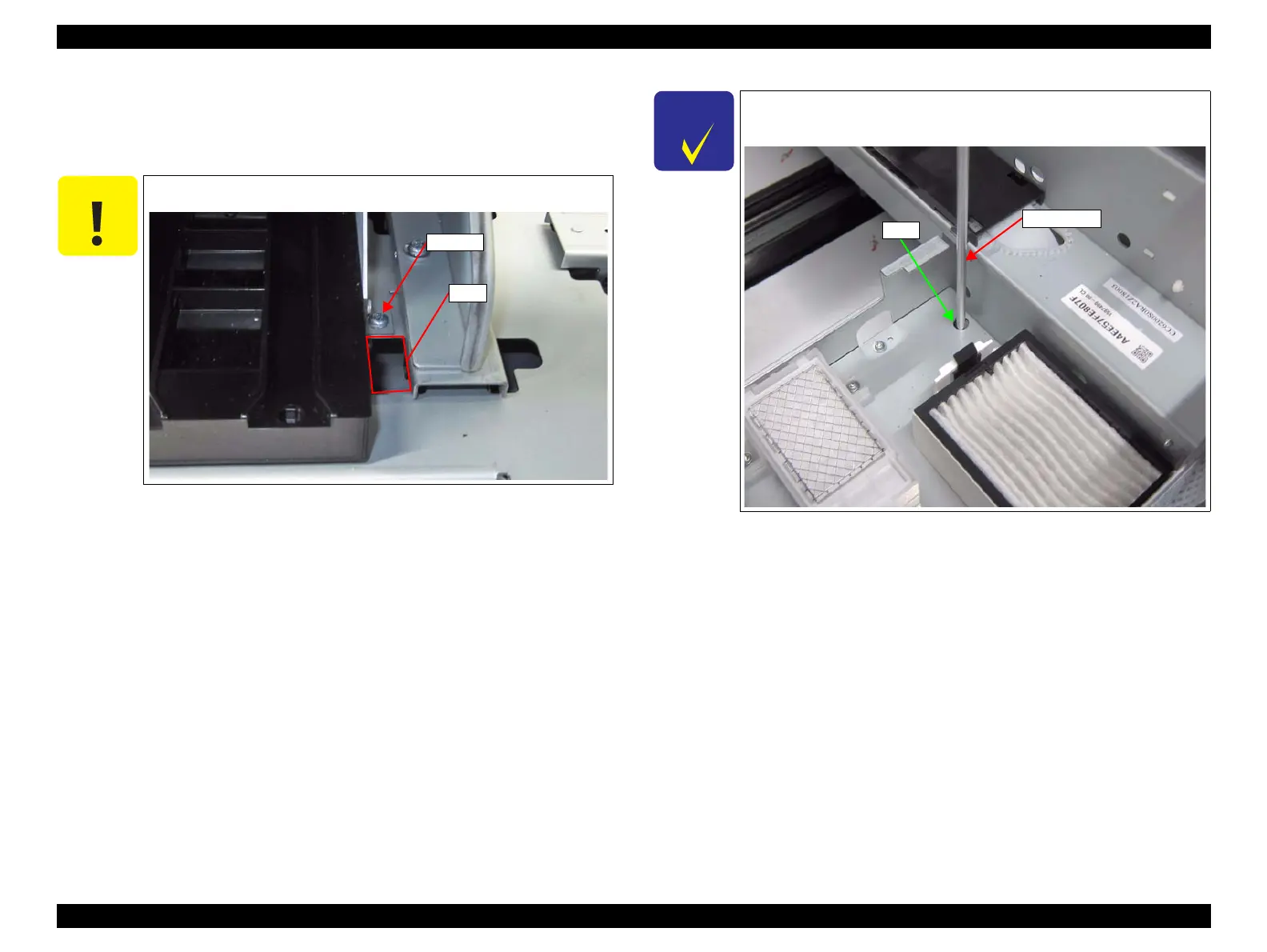

C A U T I O N
Take care not to drop the screw C in the hole on the frame.
Screw C
Hole
C H E C K
P O I N T
When removing the screw C, insert a screwdriver in the hole on the
frame shown in the below figure.
Hole
Screwdriver
