SC-F2000 Revision C
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 160
Confidential

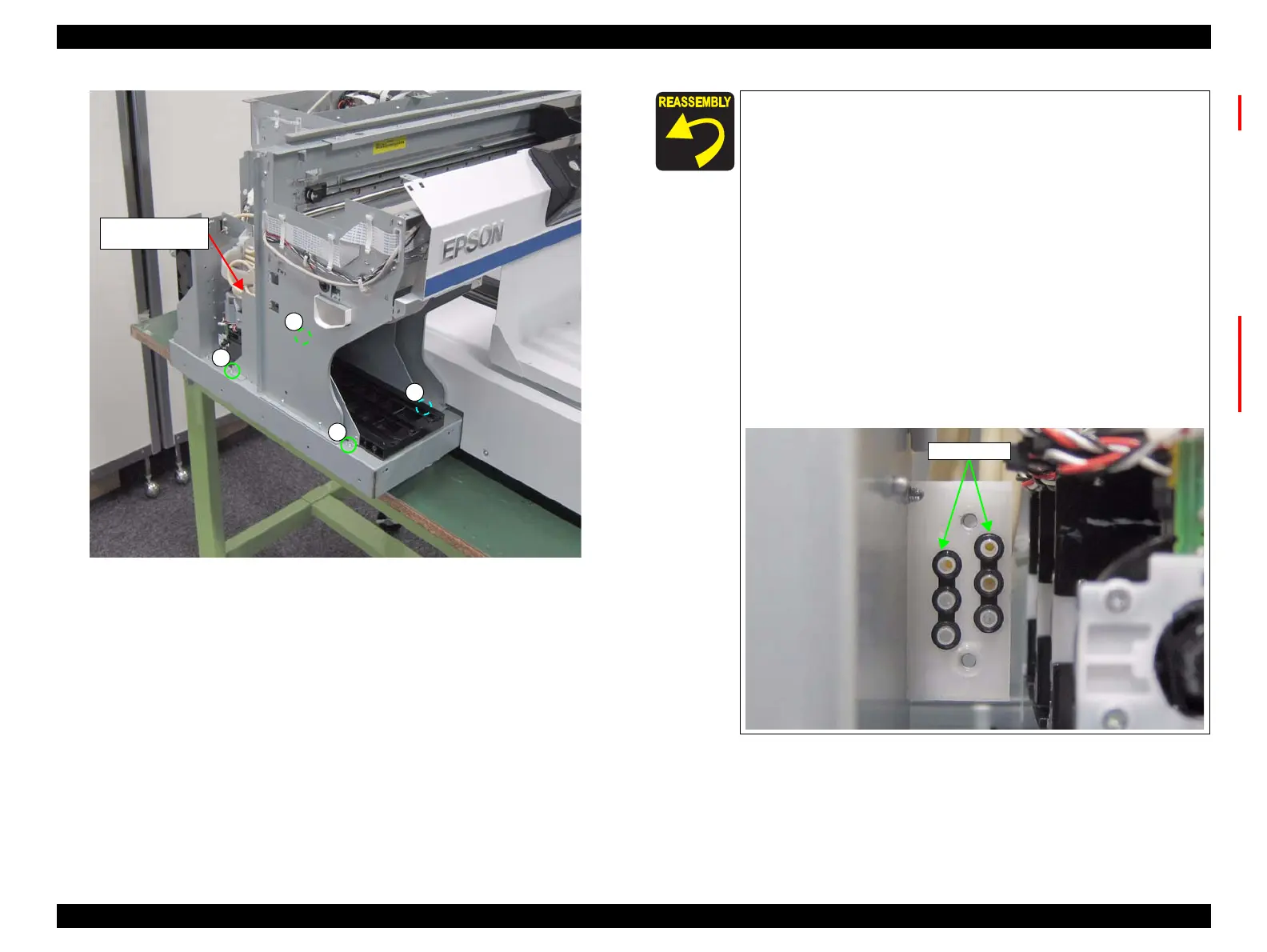

Figure 3-124. Removing the LEFT INK HOLDER ASSY (2)
Installing the LEFT INK HOLDER ASSY, attach the film (3)
of the INK MIST COVER ASSY. (p114)
Before installing the joint, make sure the Joint Rubbers are
attached to it.
Before attaching the Joint Rubber, let it get wet with cleaning
liquid.
Make sure to tighten the screw that secures the tube of the
LEFT INK HOLDER ASSY using a torque driver with the
following torque.
0.39 ± 0.05 N/m
Always use new Joint Rubbers.
Insert only Joint Rubber per line between upper Joint and
lower Joint.
Confirm there are no foreign objects attached on the Joint
Rubbers.
To Next Page
