SC-F2000 Revision C
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 161
Confidential
3.4.5.17 RIGHT INK HOLDER ASSY
1. Perform the Ink eject.
2. Remove the PRINTER COVER. (p72)
3. Remove the RIGHT HOUSING PLATE. (p74)
4. Remove the RIGHT COVER ASSY. (p88)
5. Remove the LEFT HOUSING PLATE. (p73)
6. Remove the LEFT COVER ASSY. (p86)
7. Remove the REAR COVER SUB ASSY. (p77)
8. Remove the REAR COVER. (p79)
9. Remove the RIGHT IC COVER SENSOR. (p91)
10. Remove the RIGHT IH COVER. (p85)
11. Remove the Maintenance Cover. (p143)

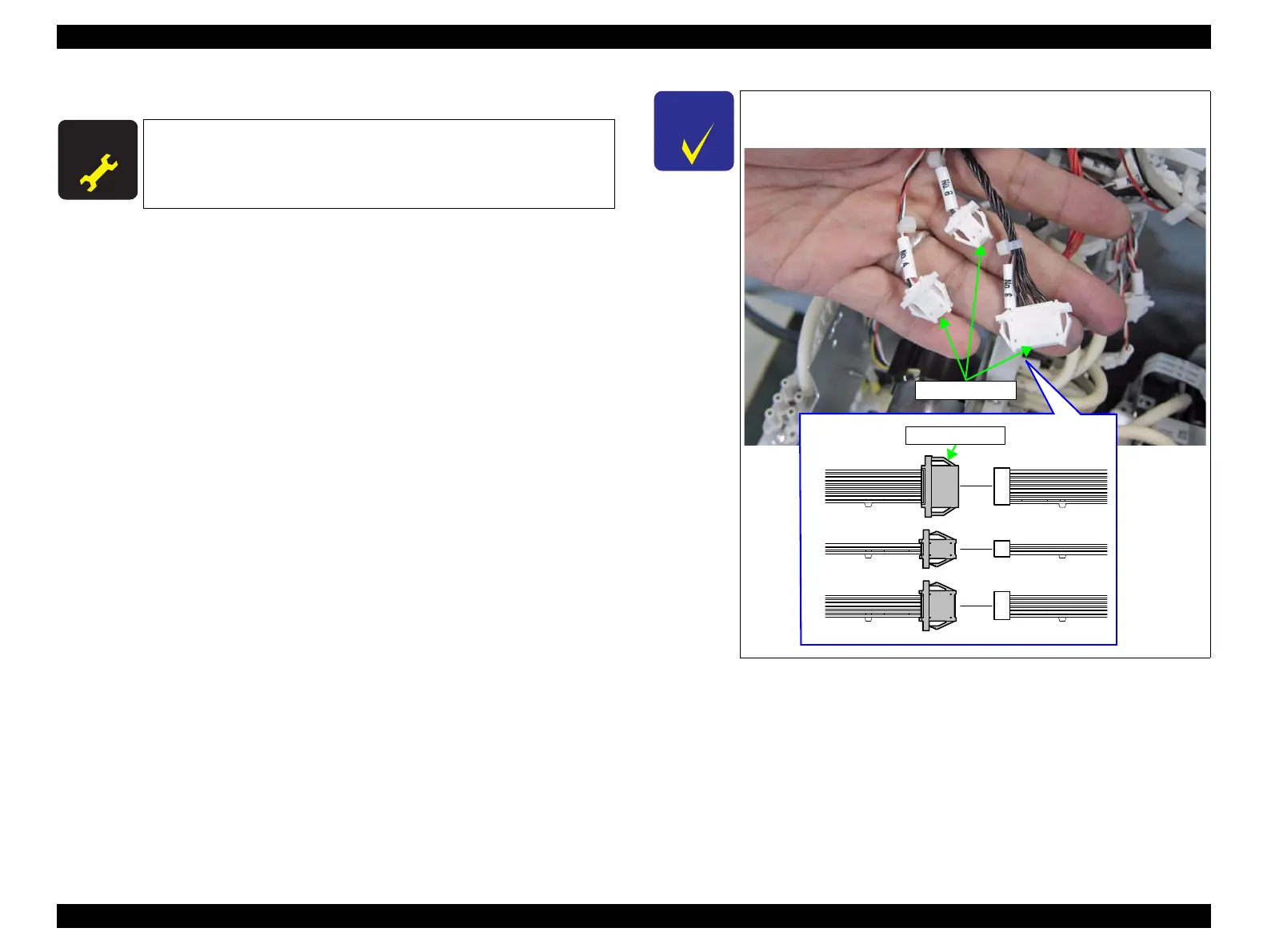

12. Disconnect the cables from the relay connectors (No.4, No.6, No.8).
13. Remove the FFC from the back side of the RIGHT INK HOLDER ASSY.
A D J U S T M E N T
R E Q U I R E D
When replacing this part, refer to “4.1.2 Adjustment Items and
the Order by Repaired Part” (p194) and make sure to perform the
specified operations including required adjustment.
Leave the relay connectors at the main body side to reuse them.
Confirm the relay connectors to disconnect the cables.
