3.4.3.3 RIGHT HOUSING PLATE
1. Open the PRINTER COVER.
2. Remove the screw that secures the RIGHT HOUSING PLATE.
A) Silver M4x8 Cup P-tite screw: 1 pcs
3. Slide the RIGHT HOUSING PLATE in the direction of the arrow, and disengage
the eight hooks.

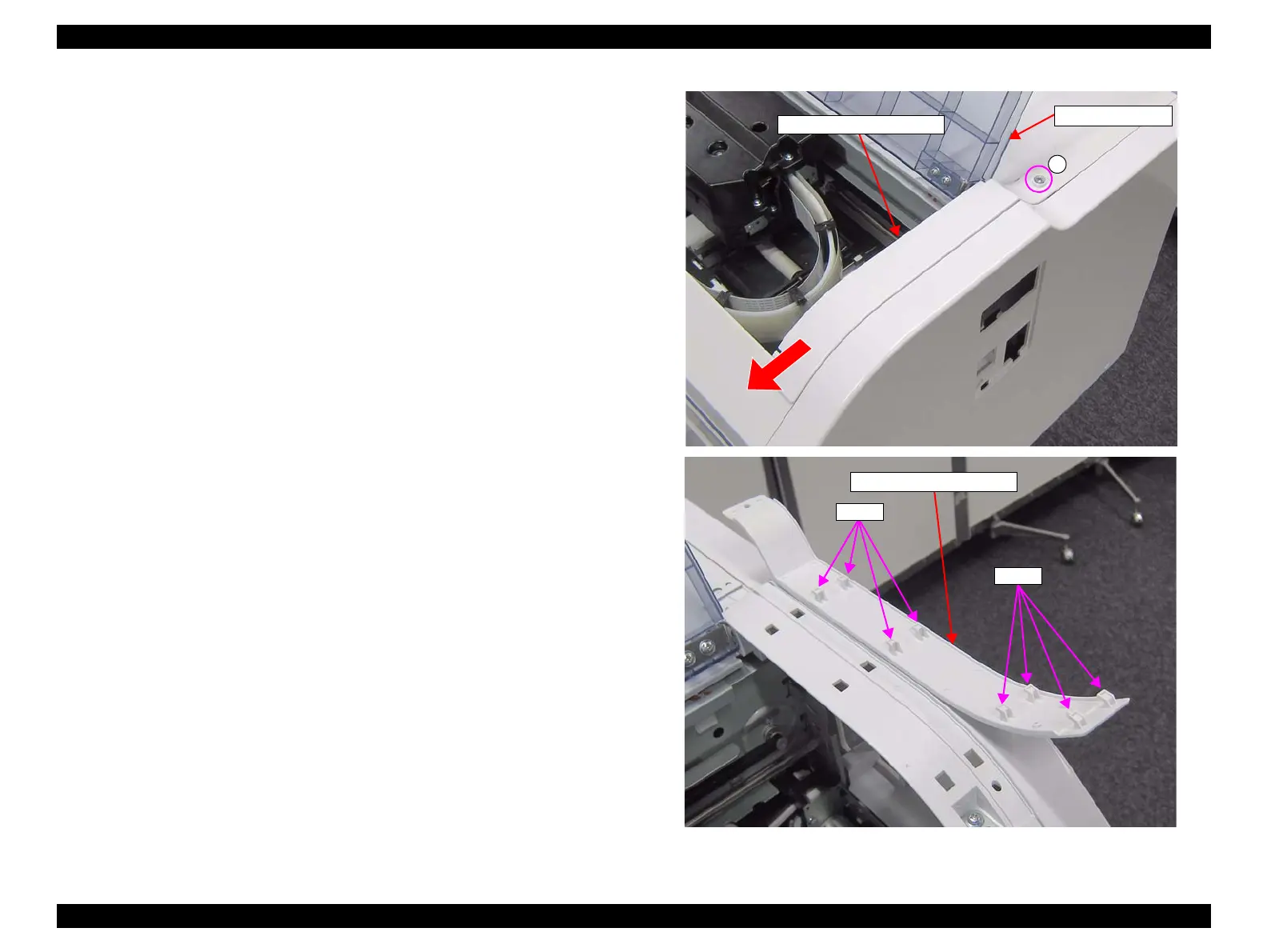

Figure 3-17. Removing the RIGHT HOUSING PLATE
RIGHT HOUSING PLATE
A
RIGHT HOUSING PLATE
Hooks
Hooks
PRINTER COVER
