3.4.3.13 RIGHT IH COVER
1. Remove the PRINTER COVER. (p72)
2. Remove the RIGHT HOUSING PLATE. (p74)
3. Remove the RIGHT COVER ASSY. (p88)
4. Remove the RIGHT IC COVER SENSOR. (p91)
5. Remove the RIGHT IC COVER. (p83)
6. Remove the six screws, and remove the RIGHT IH COVER.
A) Silver M3x8 Cup S-tite screw: 6 pcs

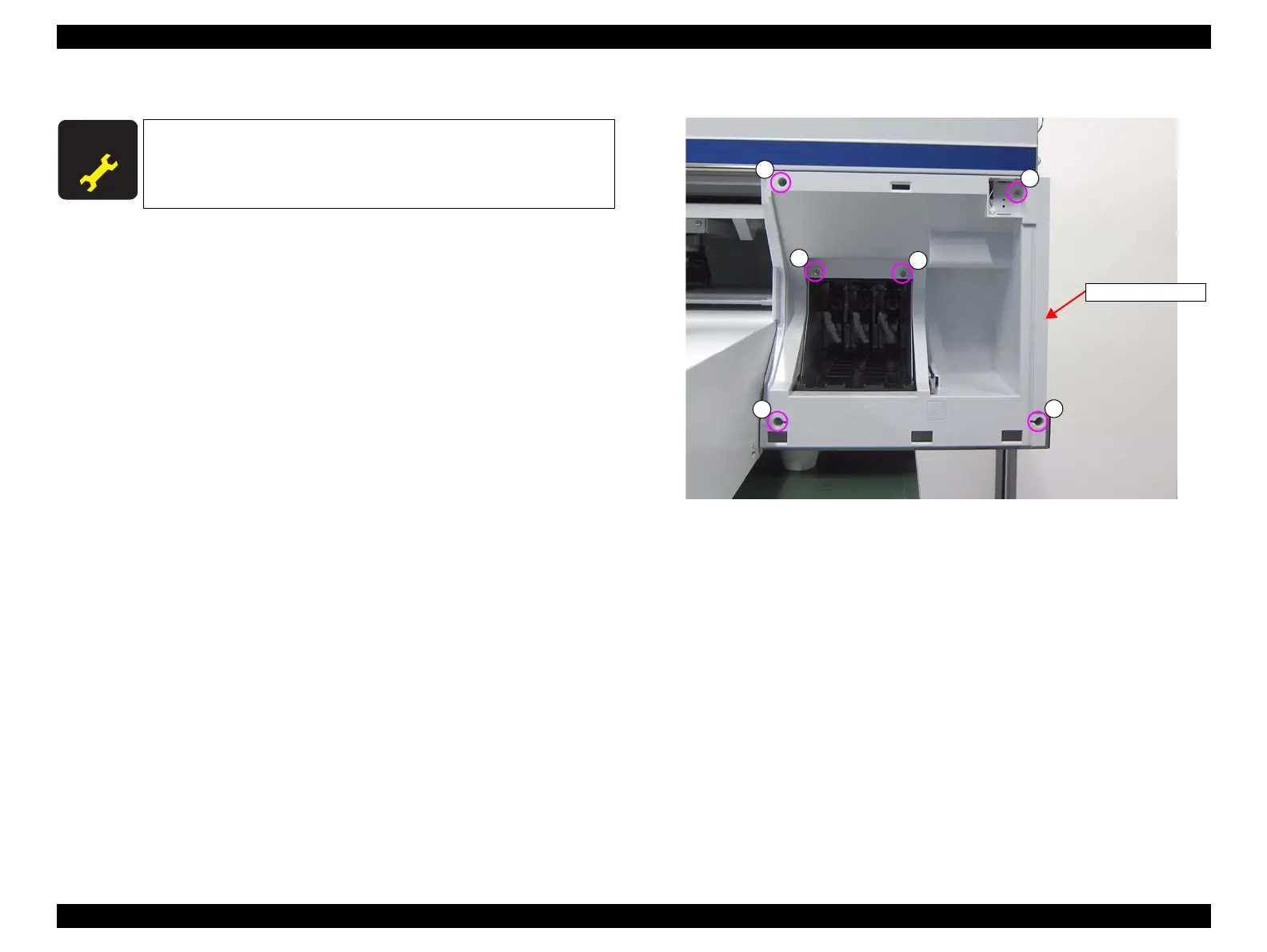

Figure 3-28. Removing the RIGHT IH COVER
A D J U S T M E N T
R E Q U I R E D
When replacing/removing this part, refer to “4.1.2 Adjustment
Items and the Order by Repaired Part” (p194) and make sure to
perform the specified operations including required adjustment.
A
RIGHT IH COVER
A
A
A
A
A
